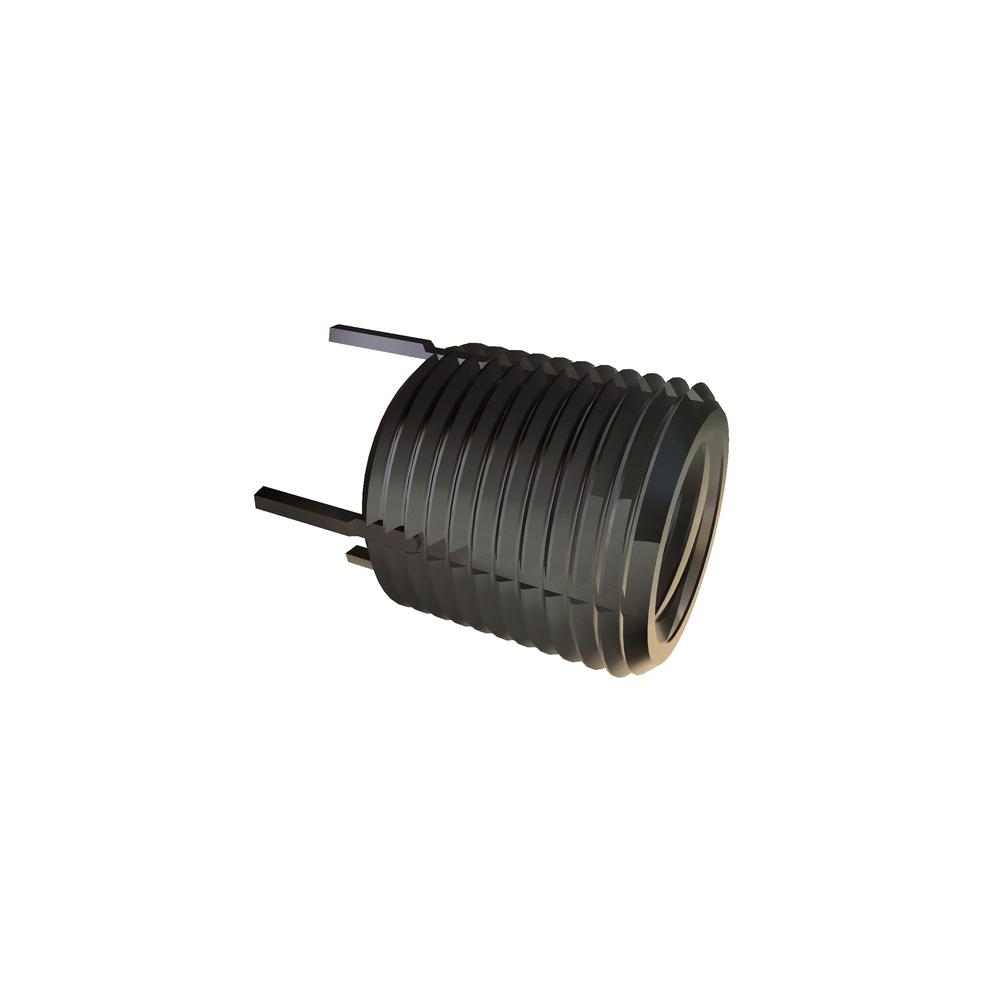

76308
5/8-11 X .87 KEYLOCK INS 7/8-14 303SST
Alternate Codes: 217-076308, 91731A058, 92100A731, MS51831-108
MS51831-108
Pricing per Unit
| 1-4 pcs | 5-9 pcs | 10-24 pcs | 25-49 pcs | 50-99 pcs | Call For |
|---|---|---|---|---|---|
| $21.294 | $18.100 | $15.083 | $14.480 | $13.407 | Larger Quantities |
In Stock
| Thread Size | 5/8-11 |
| Material | 303 Stainless Steel |
| Finish | Passivated |
| Units | Inch |
| Nominal Diameter | 0.625in |
| Insert Type | Non Locking |
| Grade | Heavy Duty |
| Drill Size | 0.828in |
| Brand | ACME INDUSTRIAL |
| Type | Keylock Insert |
| Removal Drill Depth | 0.188in |
| Removal Drill Size | 25/32in |
| Minimum Installation Depth | 1.000in |
| Thread Tap Size | 7/8-14 |
| Self Locking Distance | 0.330in |
| External Thread Nominal Diameter | 0.875in |
| Internal Thread Nominal Diameter | 0.625in |
| Bore Depth | 0.100in |
| Counter Sink Diameter | 0.885in |
| External Thread | 7/8-14 |
