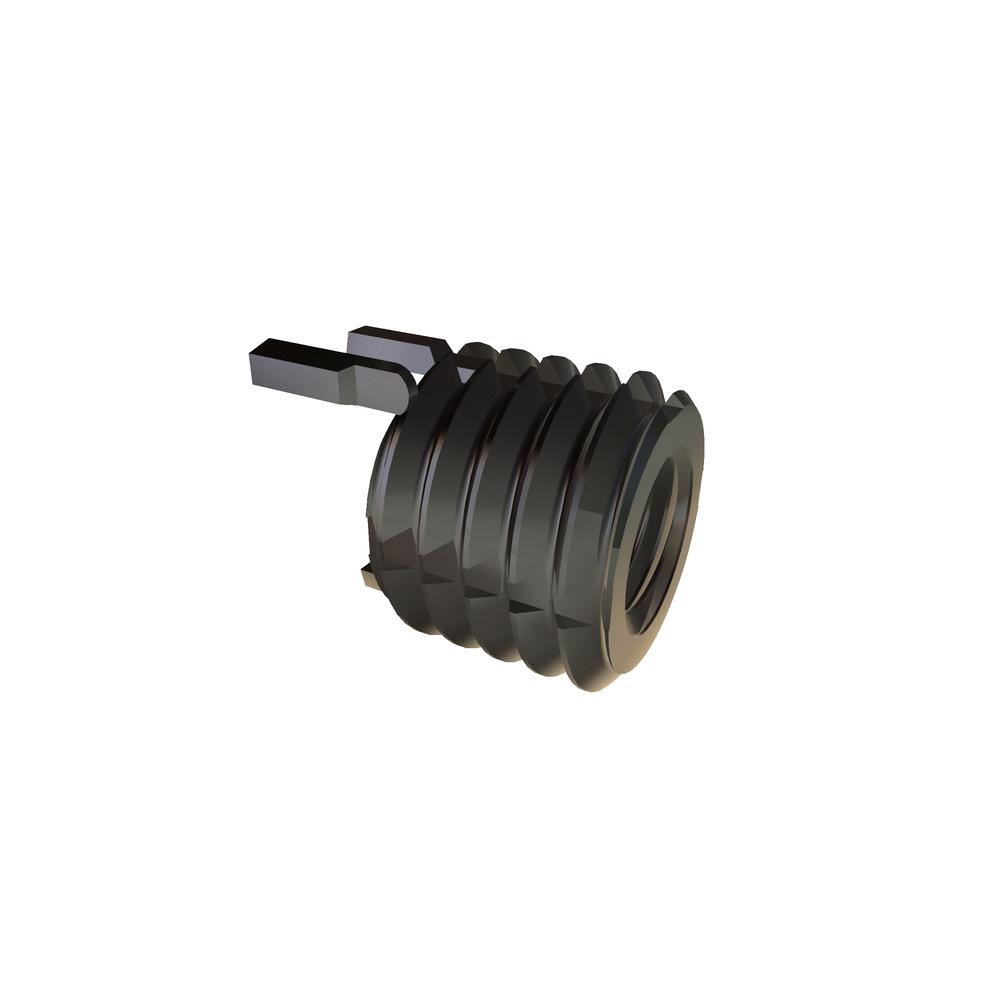

Image for reference purposes only. Actual product may vary.
76336
3/8-16 X .50 KEYLOCK INS 5/8-11 303 SST
Alternate Codes: KNHXH616J, MS51832-104
Pricing per Unit
| 1-4 pcs | 5-9 pcs | 10-24 pcs | 25-49 pcs | 50-99 pcs | Call For |
|---|---|---|---|---|---|
| $16.324 | $13.875 | $11.563 | $11.100 | $10.278 | Larger Quantities |
In Stock
Maximum stock already in cart
| Thread Size | 3/8-16 |
| Finish | Passivated |
| Type | Keylock Insert |
| Brand | ACME INDUSTRIAL |
| Grade | Extra Heavy Duty |
| Material | 303 Stainless Steel |
| External Thread | 5/8-11 |
| Units | Inch |
| Nominal Diameter | 0.375in |
| Insert Type | Non Locking |
| Drill Size | 0.578in |
| Removal Drill Depth | 0.188in |
| Removal Drill Size | 17/32in |
| Minimum Installation Depth | 0.560in |
| Thread Tap Size | 5/8-11 |
| Self Locking Distance | 0.250in |
| External Thread Nominal Diameter | 0.625in |
| Internal Thread Nominal Diameter | 0.375in |
| Bore Depth | 0.070in |
| Counter Sink Diameter | 0.635in |
