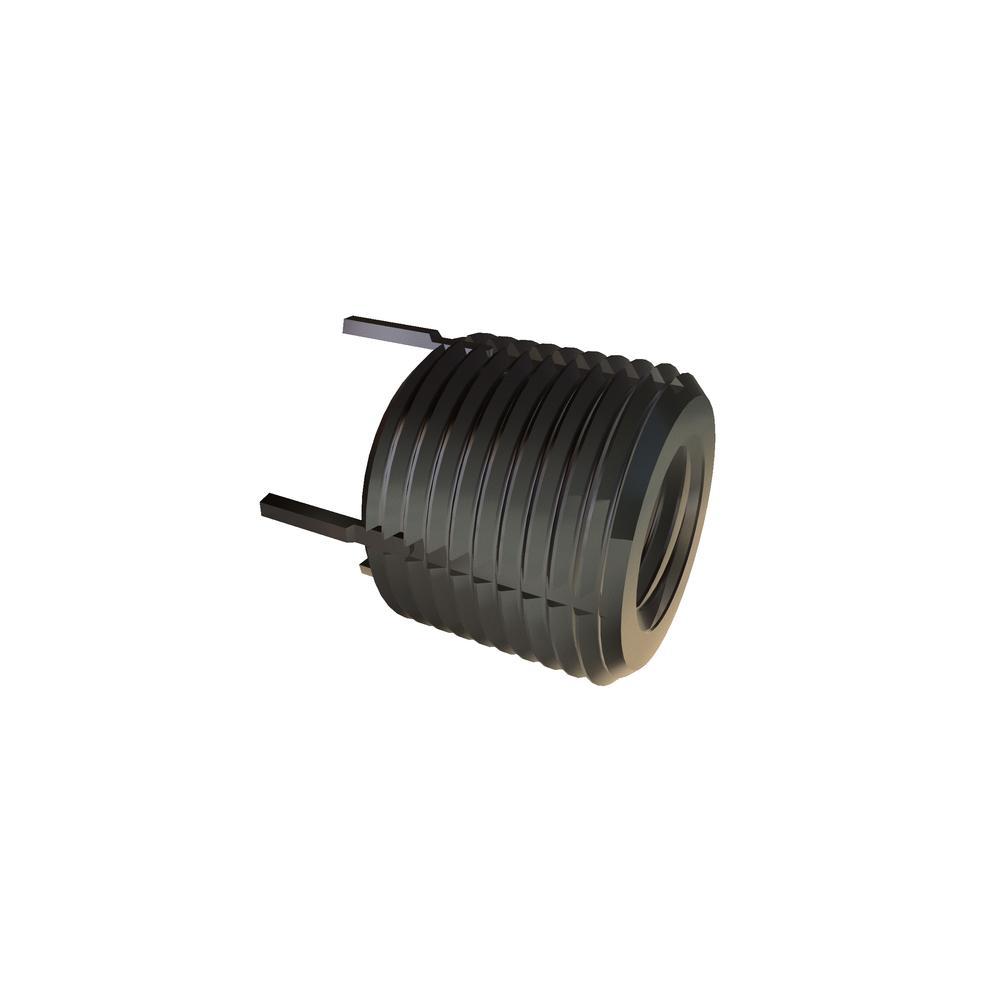

Image for reference purposes only. Actual product may vary.
76338
1/2-13 X .68 KEYLOCK INS 13/16-16 303SST
Alternate Codes: 217-076338, KNHXH813J HOWMET, MS51832-106
Pricing per Unit
| 1-4 pcs | 5-9 pcs | 10-24 pcs | 25-49 pcs | 50-99 pcs | Call For |
|---|---|---|---|---|---|
| $18.971 | $16.125 | $13.438 | $12.900 | $11.944 | Larger Quantities |
In Stock
Maximum stock already in cart
| Thread Size | 1/2-13 |
| Finish | Passivated |
| Type | Keylock Insert |
| Brand | ACME INDUSTRIAL |
| Grade | Extra Heavy Duty |
| Material | 303 Stainless Steel |
| External Thread | 13/16-16 |
| Units | Inch |
| Nominal Diameter | 0.500in |
| Insert Type | Non Locking |
| Drill Size | 0.766in |
| Removal Drill Depth | 0.188in |
| Removal Drill Size | 23/32in |
| Minimum Installation Depth | 0.750in |
| Thread Tap Size | 13/16-16 |
| Self Locking Distance | 0.280in |
| Internal Thread Nominal Diameter | 0.500in |
| Bore Depth | 0.100in |
| Counter Sink Diameter | 0.822in |
