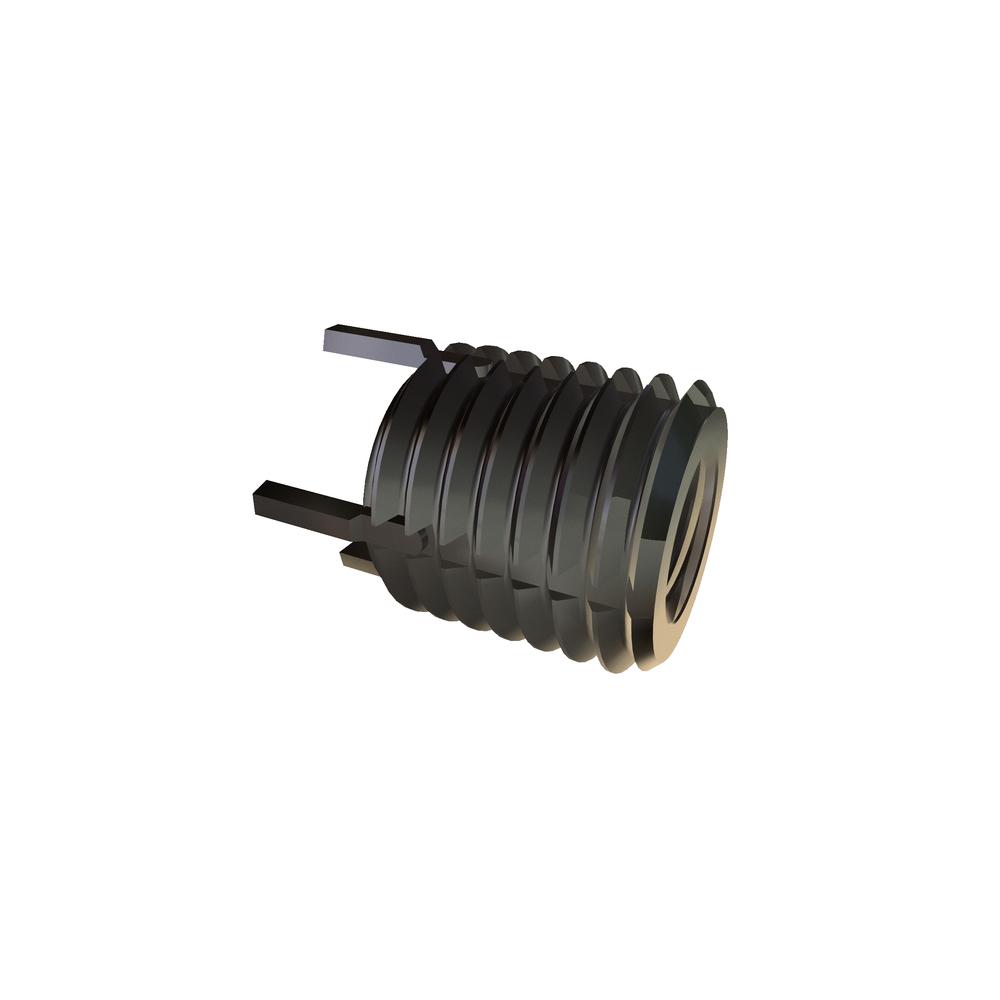

Image for reference purposes only. Actual product may vary.
76352
M6-1.0 X 10.0 KEYLOCK INS M10-1.25
Alternate Codes: 217-076352, 217-076352 ACME, 93715A610, KNM6X1.0 HOWMET
Pricing per Unit
| 1-24 pcs | 25-49 pcs | 50-99 pcs | 100-249 pcs | 250-499 pcs | Call For |
|---|---|---|---|---|---|
| $5.188 | $4.272 | $3.822 | $3.228 | $3.090 | Larger Quantities |
In Stock
Maximum stock already in cart
| Thread Size | M6x1 |
| Finish | Passivated |
| Type | Keylock Insert |
| Brand | ACME INDUSTRIAL |
| Grade | Light Duty |
| Material | 303 Stainless Steel |
| External Thread | M10-1.25 |
| Units | Metric |
| Nominal Diameter | 6.00 mm |
| Insert Type | Non Locking |
| Drill Size | 8.8 mm |
| Removal Drill Depth | 4.75 mm |
| Removal Drill Size | 7.5 mm |
| Minimum Installation Depth | 11.50 mm |
| Thread Tap Size | M10-1.25 |
| Self Locking Distance | 6.02 mm |
| External Thread Nominal Diameter | 10.00 mm |
| Internal Thread Nominal Diameter | 6.00 mm |
| Bore Depth | 1.78 mm |
| Counter Sink Diameter | 10.25 mm |
