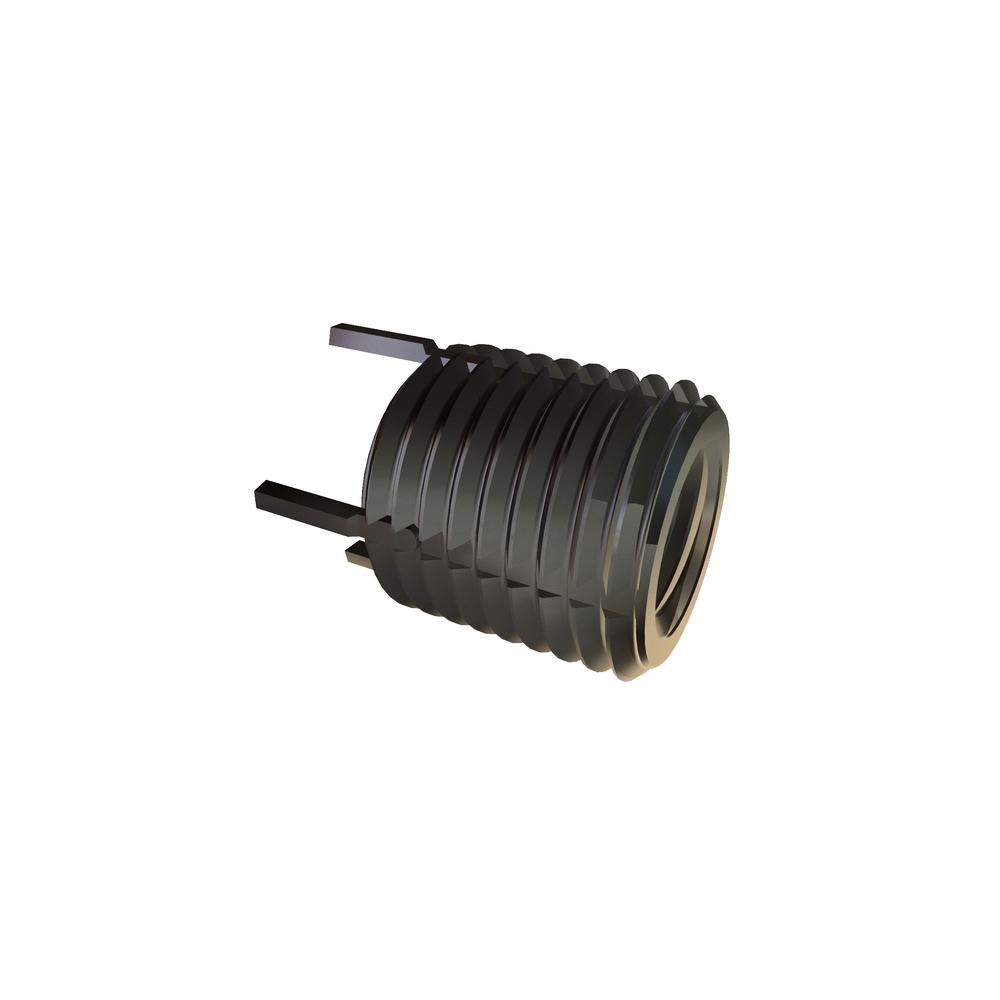

Image for reference purposes only. Actual product may vary.
76353
M8-1.25 X 12.0 KEYLOCK INS M12-1.25
Alternate Codes: 217-076353, 93715A615, KNM8X1.25 HOWMET
Pricing per Unit
| 1-24 pcs | 25-49 pcs | 50-99 pcs | 100-249 pcs | 250-499 pcs | Call For |
|---|---|---|---|---|---|
| $6.393 | $5.265 | $4.711 | $3.978 | $3.809 | Larger Quantities |
In Stock
Maximum stock already in cart
| Thread Size | M8x1.25 |
| Finish | Passivated |
| Type | Keylock Insert |
| Brand | ACME INDUSTRIAL |
| Grade | Light Duty |
| Material | 303 Stainless Steel |
| External Thread | M12-1.25 |
| Units | Metric |
| Nominal Diameter | 8.00 mm |
| Insert Type | Non Locking |
| Drill Size | 10.8 mm |
| Removal Drill Depth | 4.75 mm |
| Removal Drill Size | 9.5 mm |
| Minimum Installation Depth | 13.50 mm |
| Thread Tap Size | M12-1.25 |
| Self Locking Distance | 6.28 mm |
| External Thread Nominal Diameter | 12.00 mm |
| Internal Thread Nominal Diameter | 8.00 mm |
| Bore Depth | 1.78 mm |
| Counter Sink Diameter | 12.25 mm |
