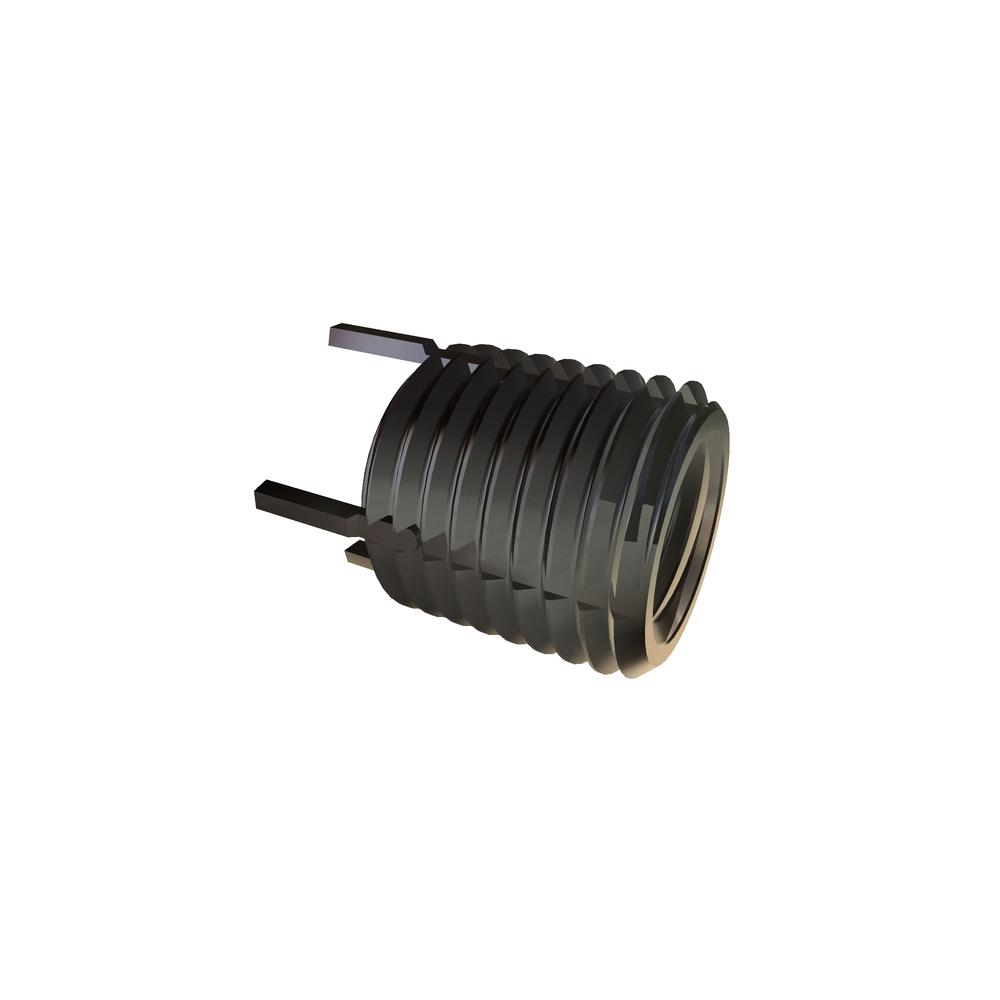

Image for reference purposes only. Actual product may vary.
76355
M10-1.5 X 14.0 KEYLOCK INS M14-1.5
Alternate Codes: 93715A625, KNM10X1.5
Pricing per Unit
| 1-24 pcs | 25-49 pcs | 50-99 pcs | 100-249 pcs | 250-499 pcs | Call For |
|---|---|---|---|---|---|
| $10.643 | $8.765 | $7.842 | $6.622 | $6.340 | Larger Quantities |
In Stock
Maximum stock already in cart
| Thread Size | M10x1.5 |
| Finish | Passivated |
| Type | Keylock Insert |
| Brand | ACME INDUSTRIAL |
| Grade | Light Duty |
| Material | 303 Stainless Steel |
| External Thread | M14-1.5 |
| Units | Metric |
| Nominal Diameter | 10.00 mm |
| Insert Type | Non Locking |
| Drill Size | 12.8 mm |
| Removal Drill Depth | 4.75 mm |
| Removal Drill Size | 11.5 mm |
| Minimum Installation Depth | 15.50 mm |
| Thread Tap Size | M14-1.5 |
| Self Locking Distance | 6.46 mm |
| External Thread Nominal Diameter | 14.00 mm |
| Internal Thread Nominal Diameter | 10.00 mm |
| Bore Depth | 2.29 mm |
| Counter Sink Diameter | 14.25 mm |
