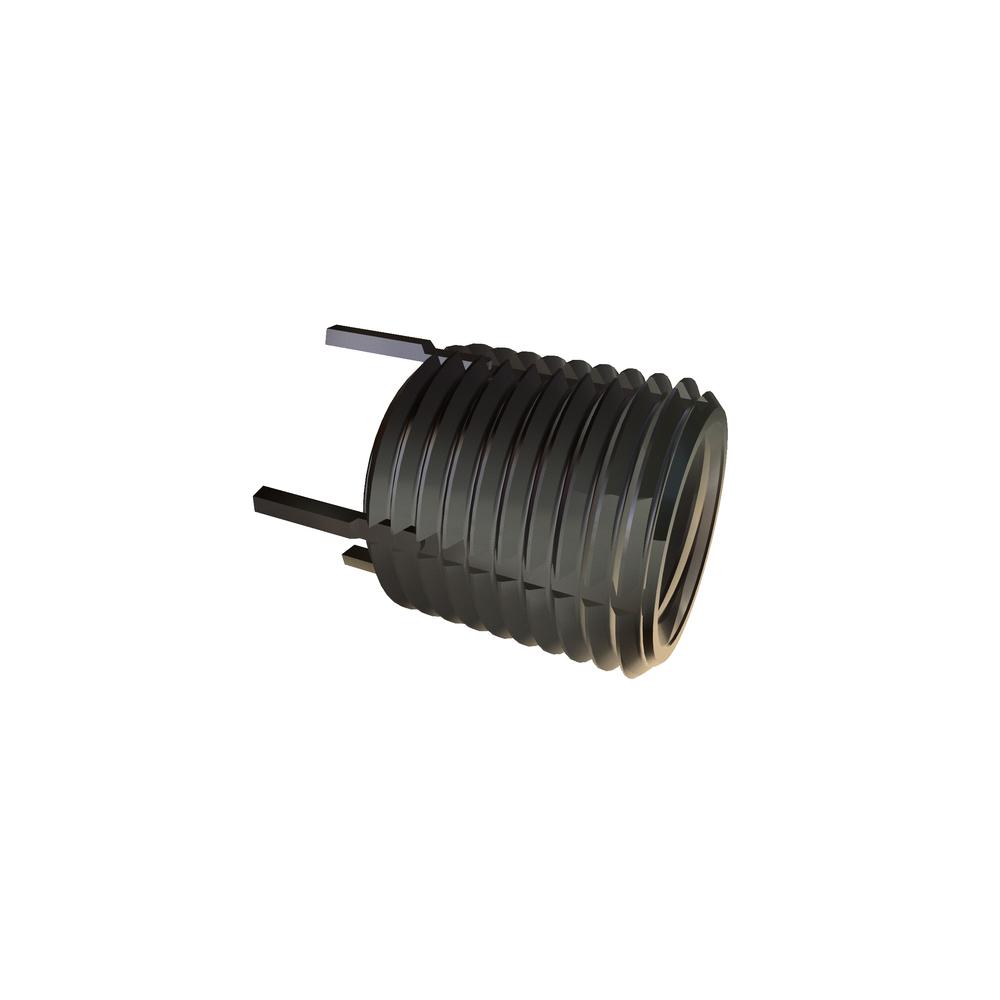

Image for reference purposes only. Actual product may vary.
76356
M12-1.75 X 16.0 KEYLOCK INS M16-1.5
Alternate Codes: 93715A635, KNM12X1.75
Pricing per Unit
| 1-4 pcs | 5-9 pcs | 10-24 pcs | 25-49 pcs | 50-99 pcs | Call For |
|---|---|---|---|---|---|
| $22.059 | $18.750 | $15.625 | $15.000 | $13.889 | Larger Quantities |
In Stock
Maximum stock already in cart
| Thread Size | M12x1.75 |
| Finish | Passivated |
| Type | Keylock Insert |
| Brand | ACME INDUSTRIAL |
| Grade | Light Duty |
| Material | 303 Stainless Steel |
| External Thread | M16-1.5 |
| Units | Metric |
| Nominal Diameter | 12.00 mm |
| Insert Type | Non Locking |
| Drill Size | 14.75 mm |
| Removal Drill Depth | 4.75 mm |
| Removal Drill Size | 13.5 mm |
| Minimum Installation Depth | 17.50 mm |
| Thread Tap Size | M16-1.5 |
| Self Locking Distance | 6.46 mm |
| External Thread Nominal Diameter | 16.00 mm |
| Internal Thread Nominal Diameter | 12.00 mm |
| Bore Depth | 2.29 mm |
| Counter Sink Diameter | 16.25 mm |
