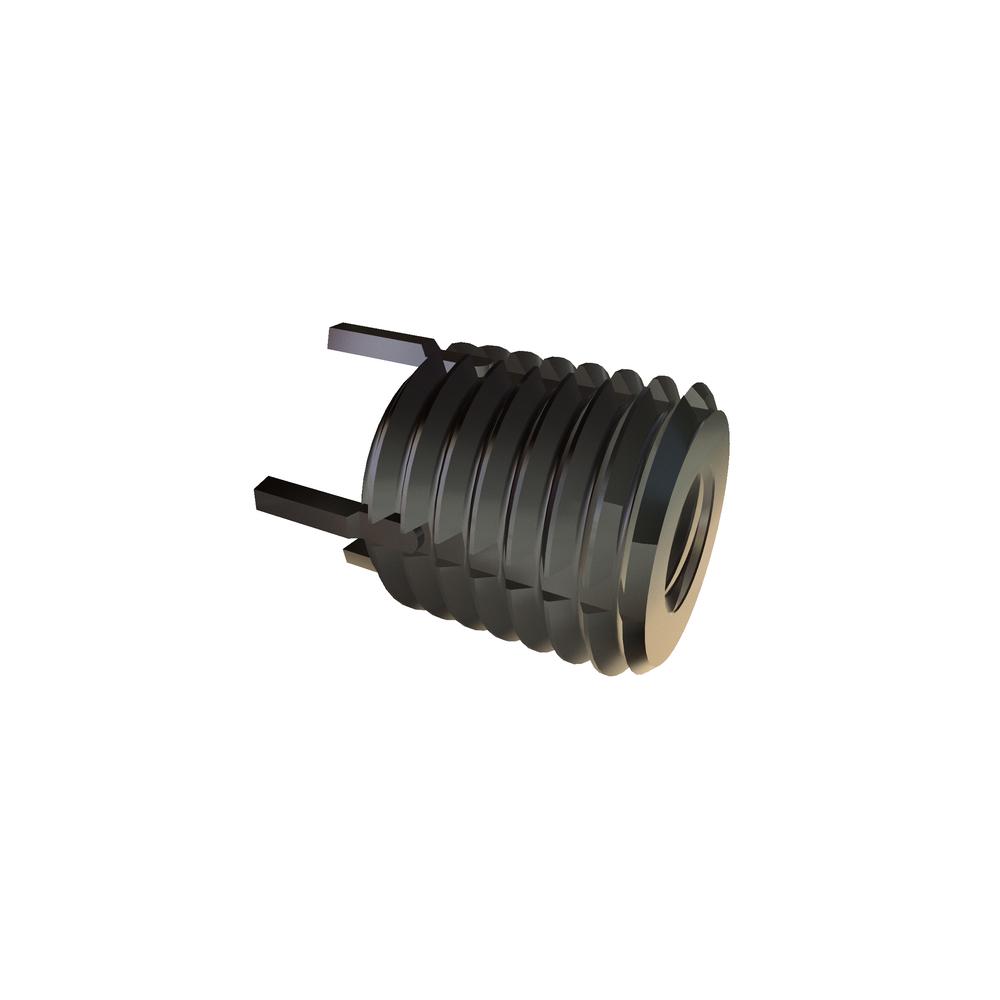

Image for reference purposes only. Actual product may vary.
76364
M5-0.8 X 10.0 KEYLOCK INS M10-1.25
Alternate Codes: 217-076364, 93715A365, KNHM5X0.8
Pricing per Unit
| 1-24 pcs | 25-49 pcs | 50-99 pcs | 100-249 pcs | 250-499 pcs | Call For |
|---|---|---|---|---|---|
| $10.643 | $8.765 | $7.842 | $6.622 | $6.340 | Larger Quantities |
Out of stock
| Thread Size | M5x0.8 |
| Finish | Passivated |
| Type | Keylock Insert |
| Brand | ACME INDUSTRIAL |
| Grade | Heavy Duty |
| Material | 303 Stainless Steel |
| External Thread | M10-1.25 |
| Units | Metric |
| Nominal Diameter | 5.00 mm |
| Insert Type | Non Locking |
| Drill Size | 8.8 mm |
| Removal Drill Depth | 4.75 mm |
| Removal Drill Size | 7.5 mm |
| Minimum Installation Depth | 12.50 mm |
| Thread Tap Size | M10-1.25 |
| Self Locking Distance | 5.50 mm |
| External Thread Nominal Diameter | 10.00 mm |
| Internal Thread Nominal Diameter | 5.00 mm |
| Bore Depth | 1.27 mm |
| Counter Sink Diameter | 10.25 mm |
