Image for reference purposes only. Actual product may vary.
76365

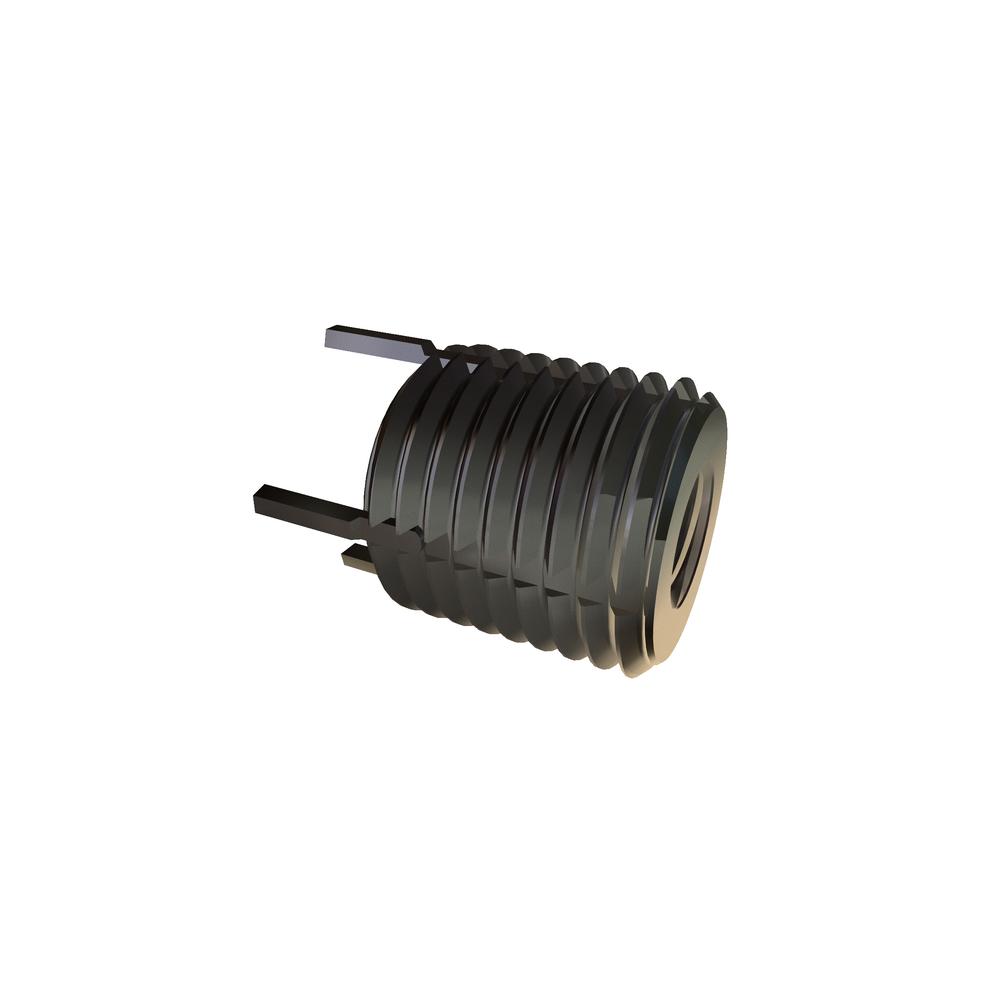

M6-1.0 X 12 KYLK INS M12-1.25 303 SST
Alternate Codes: 217-076365, 93715A375, KNHM6X1.0
Pricing per Unit
| 1-24 pcs | 25-49 pcs | 50-99 pcs | 100-249 pcs | 250-499 pcs | Call For |
|---|---|---|---|---|---|
| $9.357 | $7.706 | $6.895 | $5.822 | $5.575 | Larger Quantities |
In Stock
Maximum stock already in cart
| Thread Size | M6x1 |
| Finish | Passivated |
| Type | Keylock Insert |
| Brand | ACME INDUSTRIAL |
| Grade | Heavy Duty |
| Material | 303 Stainless Steel |
| External Thread | M12-1.25 |
| Units | Metric |
| Nominal Diameter | 6.00 mm |
| Insert Type | Non Locking |
| Drill Size | 10.8 mm |
| Removal Drill Depth | 4.75 mm |
| Removal Drill Size | 9.5 mm |
| Minimum Installation Depth | 14.50 mm |
| Thread Tap Size | M12-1.25 |
| Self Locking Distance | 6.46 mm |
| External Thread Nominal Diameter | 12.00 mm |
| Internal Thread Nominal Diameter | 6.00 mm |
| Bore Depth | 1.78 mm |
| Counter Sink Diameter | 12.25 mm |
