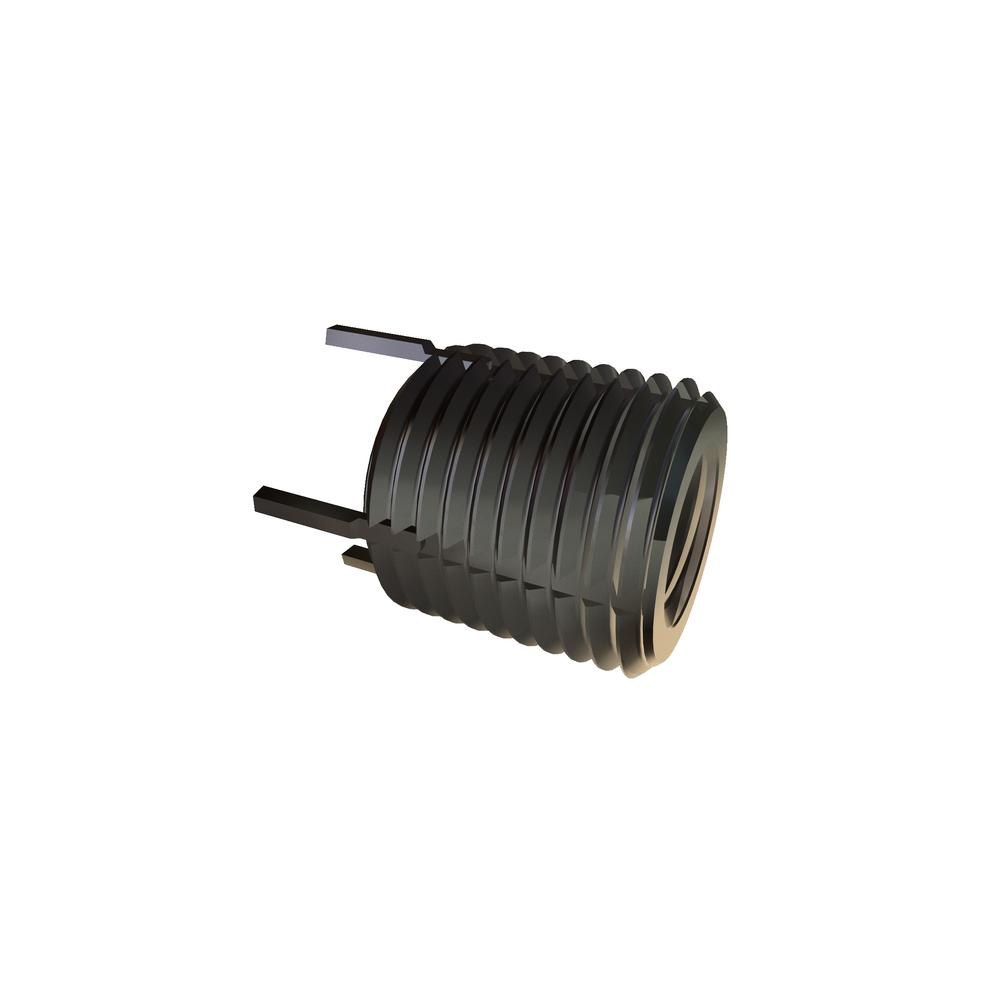

76367
M10-1.5 X 16.0 KEYLOCK INS M16-1.5
Alternate Codes: 217-076367, 93715A395, KNHM10X1.5 HOWMET
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | M10x1.5 |
| Material | 303 Stainless Steel |
| Finish | Passivated |
| Units | Metric |
| Nominal Diameter | 10.00 mm |
| Insert Type | Non Locking |
| Grade | Heavy Duty |
| Drill Size | 14.75 mm |
| Brand | ACME INDUSTRIAL |
| Type | Keylock Insert |
| Removal Drill Depth | 4.75 mm |
| Removal Drill Size | 13.5 mm |
| Minimum Installation Depth | 18.50 mm |
| Thread Tap Size | M16-1.5 |
| Self Locking Distance | 6.46 mm |
| External Thread Nominal Diameter | 16.00 mm |
| Internal Thread Nominal Diameter | 10.00 mm |
| Bore Depth | 2.29 mm |
| Counter Sink Diameter | 16.25 mm |
| External Thread | M16-1.5 |
