76371

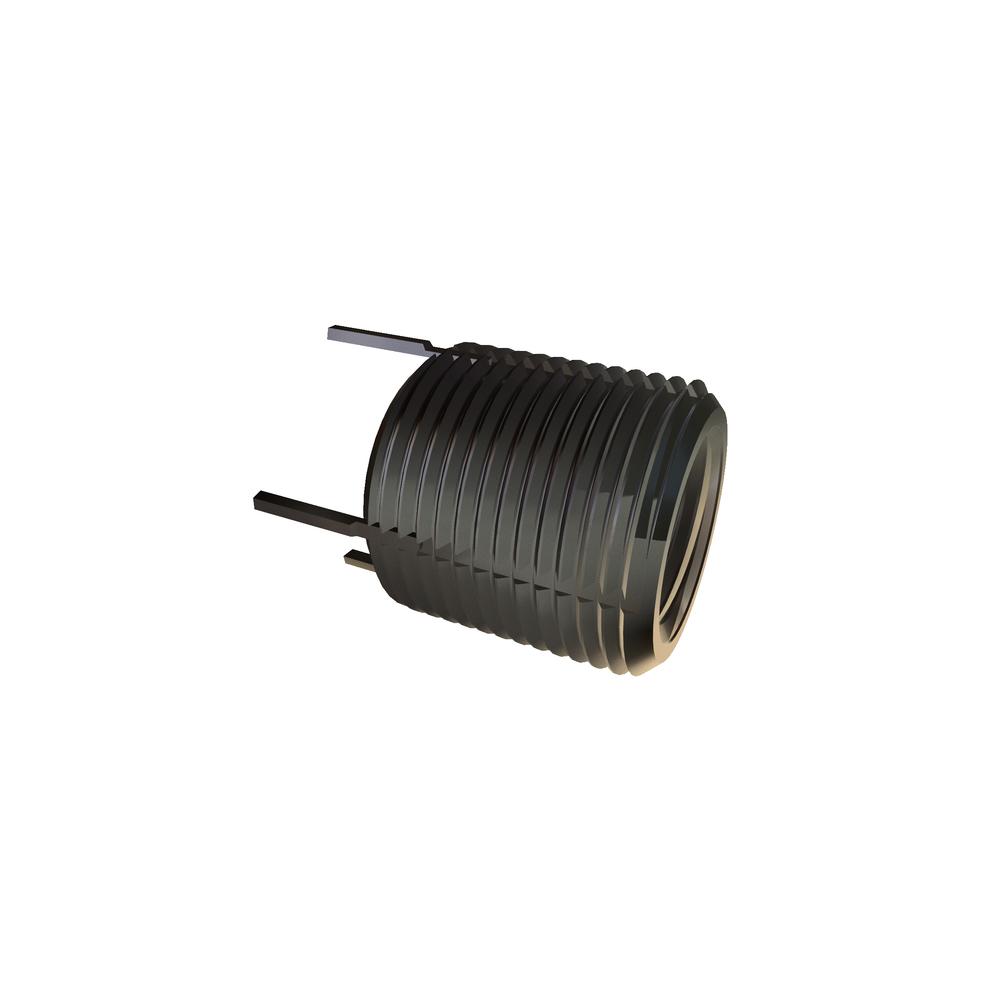

M16-2.0 X 22.0 KYLK INS M22-1.5 303 SST
Alternate Codes: 93715A655
Pricing per Unit
| 1-24 pcs | 25-49 pcs | 50-99 pcs | 100-249 pcs | 250-499 pcs | Call For |
|---|---|---|---|---|---|
| $16.500 | $13.588 | $12.158 | $10.267 | $9.830 | Larger Quantities |
In Stock
| Thread Size | M16x2 |
| Material | 303 Stainless Steel |
| Finish | Passivated |
| Units | Metric |
| Nominal Diameter | 16.00 mm |
| Insert Type | Non Locking |
| Grade | Heavy Duty |
| Drill Size | 20.5 mm |
| Brand | ACME INDUSTRIAL |
| Type | Keylock Insert |
| Removal Drill Depth | 6.35 mm |
| Removal Drill Size | 17.75 mm |
| Minimum Installation Depth | 24.50 mm |
| Thread Tap Size | M22-1.5 |
| Self Locking Distance | 8.50 mm |
| External Thread Nominal Diameter | 22.00 mm |
| Internal Thread Nominal Diameter | 16.00 mm |
| Bore Depth | 2.79 mm |
| Counter Sink Diameter | 22.25 mm |
| External Thread | M22-1.5 |
