76382

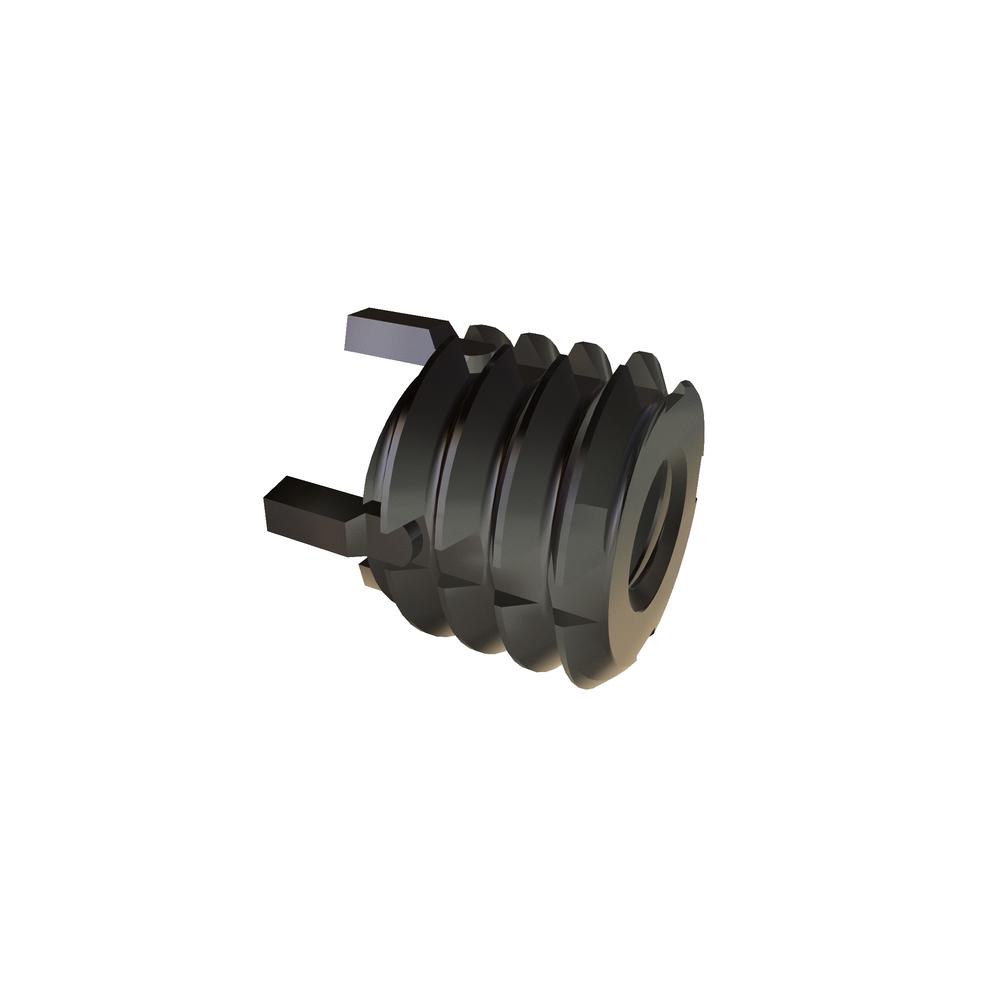

M2-0.4 X 3.0 KEYLOCK INS M4-0.7 303SST
Alternate Codes: 217-076382, 93715A315, KNCM2X0.4
Pricing per Unit
| 1-24 pcs | 25-49 pcs | 50-99 pcs | 100-249 pcs | 250-499 pcs | Call For |
|---|---|---|---|---|---|
| $8.643 | $7.118 | $6.368 | $5.378 | $5.149 | Larger Quantities |
In Stock
Maximum stock already in cart
| Thread Size | M2x0.4 |
| Finish | Passivated |
| Type | Keylock Insert |
| Brand | ACME INDUSTRIAL |
| Grade | Miniature |
| Material | 303 Stainless Steel |
| External Thread | M4-0.7 |
| Units | Metric |
| Nominal Diameter | 2.00 mm |
| Insert Type | Non Locking |
| Drill Size | 3.4 mm |
| Thread Length | 2.20 mm |
| Removal Drill Depth | 2.00 mm |
| Removal Drill Size | 2.8 mm |
| Minimum Installation Depth | 4.00 mm |
| Thread Tap Size | M4-0.7 |
| External Thread Nominal Diameter | 4.00 mm |
| Internal Thread Nominal Diameter | 2.00 mm |
| Counter Sink Diameter | 4.10 mm |
