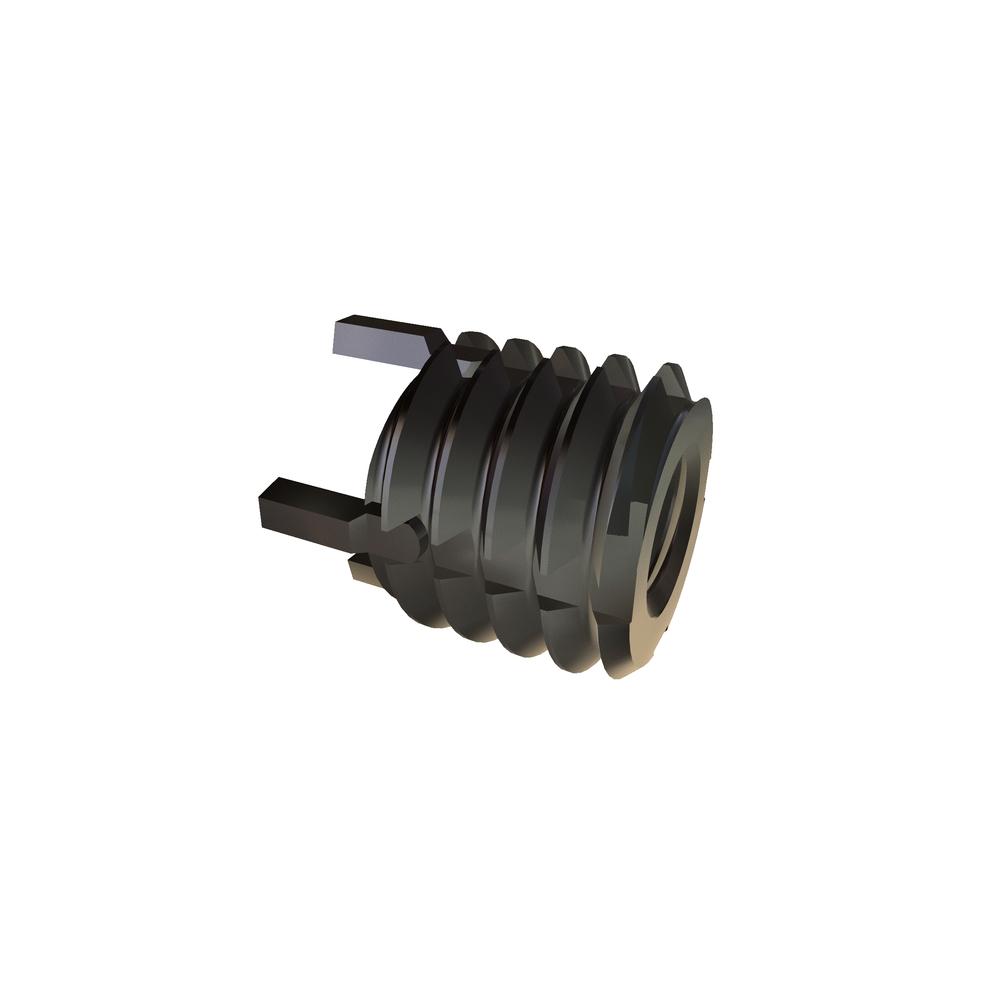

Image for reference purposes only. Actual product may vary.
76383
M2.5-0.45 X 3.8 KEY LOCK INS M4.5-0.75
Alternate Codes: KNCM2.5X0.45
303 SST
$0.000 / EA
Out of stock
| Thread Size | M2.5x0.45 |
| Finish | Passivated |
| Type | Keylock Insert |
| Brand | ACME INDUSTRIAL |
| Grade | Miniature |
| Material | 303 Stainless Steel |
| External Thread | M4.5-0.75 |
| Units | Metric |
| Nominal Diameter | 2.50 mm |
| Insert Type | Non Locking |
| Drill Size | 3.9 mm |
| Thread Length | 2.70 mm |
| Removal Drill Depth | 2.00 mm |
| Removal Drill Size | 3 mm |
| Minimum Installation Depth | 5.00 mm |
| Thread Tap Size | M4.5-0.75 |
| External Thread Nominal Diameter | 4.50 mm |
| Internal Thread Nominal Diameter | 2.50 mm |
| Counter Sink Diameter | 4.60 mm |
