76386

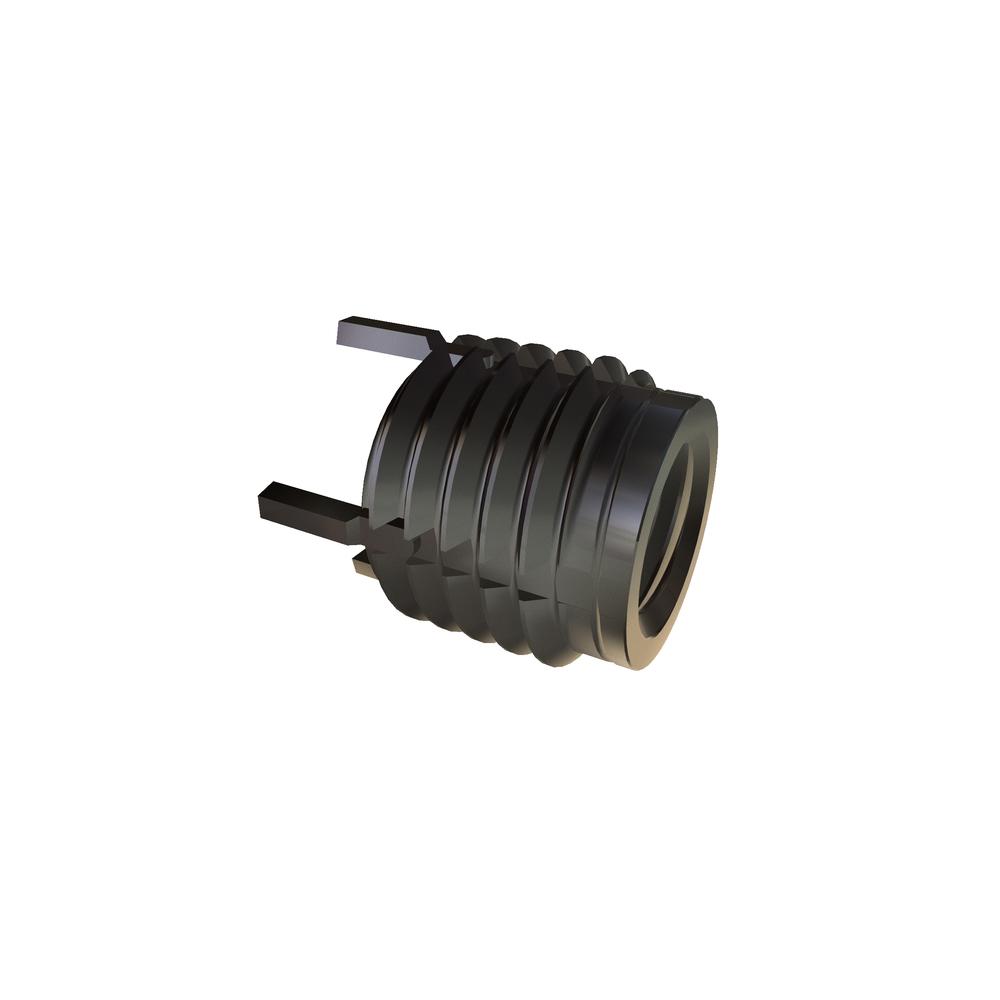

M4-0.7 X 5.25 KEYLOCK INS M6-0.75 303SST
Alternate Codes: 93715A345, KNCM4X0.7 HOWMET
Pricing per Unit
| 1-24 pcs | 25-49 pcs | 50-99 pcs | 100-249 pcs | 250-499 pcs | Call For |
|---|---|---|---|---|---|
| $10.536 | $8.677 | $7.763 | $6.556 | $6.277 | Larger Quantities |
In Stock
| Thread Size | M4x0.7 |
| Material | 303 Stainless Steel |
| Finish | Passivated |
| Units | Metric |
| Nominal Diameter | 4.00 mm |
| Insert Type | Non Locking |
| Grade | Miniature |
| Drill Size | 5.5 mm |
| Brand | ACME INDUSTRIAL |
| Type | Keylock Insert |
| Thread Length | 4.11 mm |
| Removal Drill Depth | 2.50 mm |
| Removal Drill Size | 4.6 mm |
| Minimum Installation Depth | 6.50 mm |
| Thread Tap Size | M6-0.75 |
| External Thread Nominal Diameter | 6.00 mm |
| Internal Thread Nominal Diameter | 4.00 mm |
| Counter Sink Diameter | 6.10 mm |
| External Thread | M6-0.75 |
