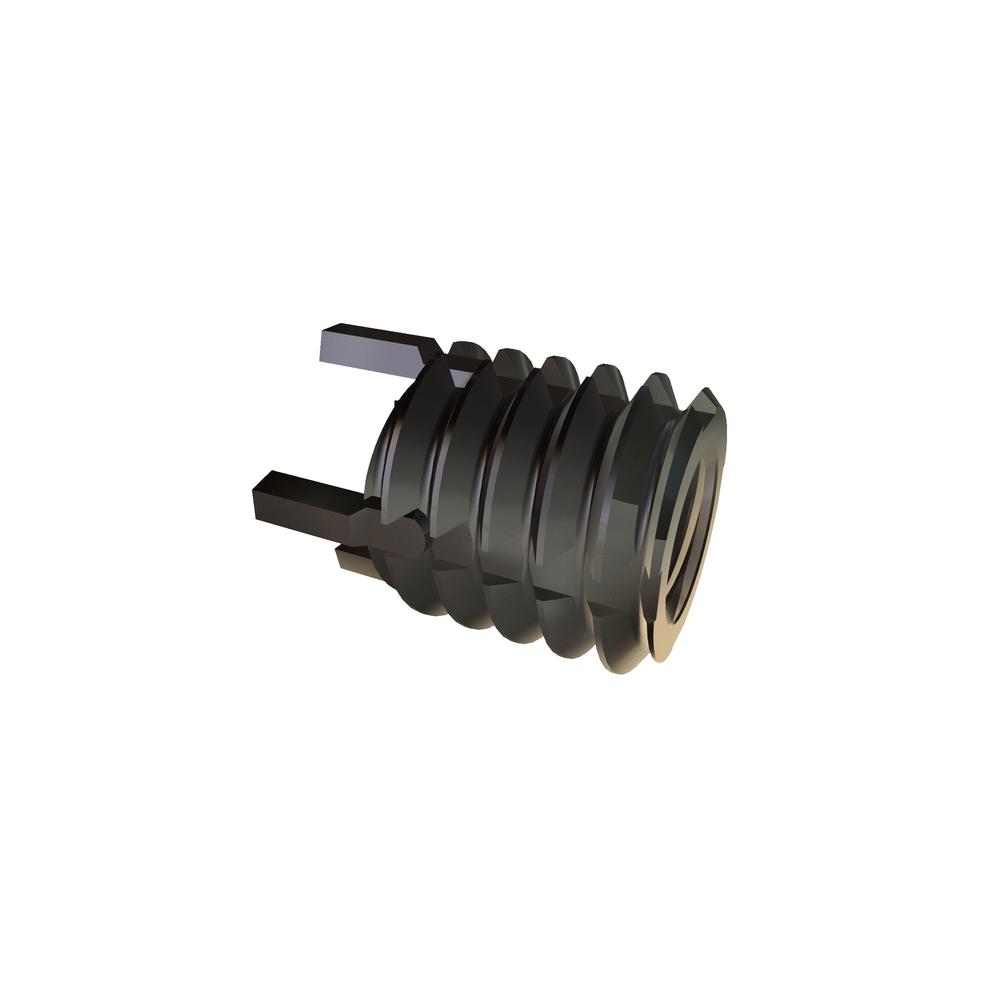

Image for reference purposes only. Actual product may vary.
76521
10-32 X .31 KEYLOCK INS 5/16-18 303SST
Alternate Codes: 217-076521, 66521, 93340A305, MS-51830-201
217-076521/MS51830-201
Pricing per Unit
| 1-24 pcs | 25-49 pcs | 50-99 pcs | 100-249 pcs | 250-499 pcs | Call For |
|---|---|---|---|---|---|
| $4.550 | $3.747 | $3.353 | $2.831 | $2.711 | Larger Quantities |
In Stock
Maximum stock already in cart
| Thread Size | 10-32 |
| Finish | Passivated |
| Type | Keylock Insert |
| Brand | ACME INDUSTRIAL |
| Grade | Light Duty |
| Material | 303 Stainless Steel |
| External Thread | 5/16-18 |
| Units | Inch |
| Nominal Diameter | 0.190in |
| Insert Type | Non Locking |
| Drill Size | 0.272in |
| Removal Drill Depth | 0.156in |
| Removal Drill Size | 7/32in |
| Minimum Installation Depth | 0.370in |
| Thread Tap Size | 5/16-18 |
| Self Locking Distance | 0.220in |
| External Thread Nominal Diameter | 0.313in |
| Internal Thread Nominal Diameter | 0.190in |
| Bore Depth | 0.070in |
| Counter Sink Diameter | 0.323in |
