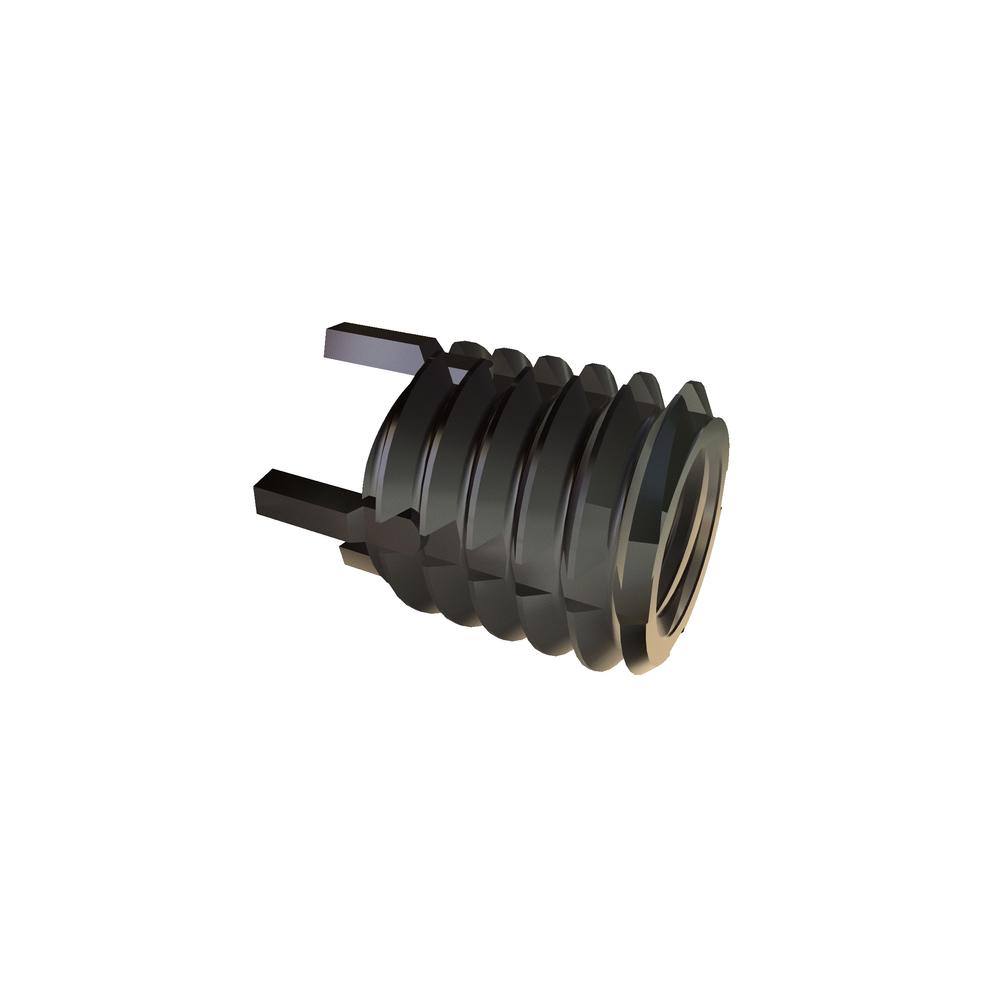

76522
1/4-28 X .37 KEYLOCK INS 3/8-16 303SST
Alternate Codes: 217-076522, 93340A310
ACME 217-076522. MS51830-202/NA1394C4
Pricing per Unit
| 1-24 pcs | 25-49 pcs | 50-99 pcs | 100-249 pcs | 250-499 pcs | Call For |
|---|---|---|---|---|---|
| $8.111 | $6.679 | $5.976 | $5.047 | $4.832 | Larger Quantities |
In Stock
| Thread Size | 1/4-28 |
| Material | 303 Stainless Steel |
| Finish | Passivated |
| Units | Inch |
| Nominal Diameter | 0.250in |
| Insert Type | Non Locking |
| Grade | Light Duty |
| Drill Size | 0.332in |
| Brand | ACME INDUSTRIAL |
| Type | Keylock Insert |
| Removal Drill Depth | 0.188in |
| Removal Drill Size | 9/32in |
| Minimum Installation Depth | 0.430in |
| Thread Tap Size | 3/8-16 |
| Self Locking Distance | 0.220in |
| External Thread Nominal Diameter | 0.375in |
| Internal Thread Nominal Diameter | 0.250in |
| Bore Depth | 0.070in |
| Counter Sink Diameter | 0.385in |
| External Thread | 3/8-16 |
