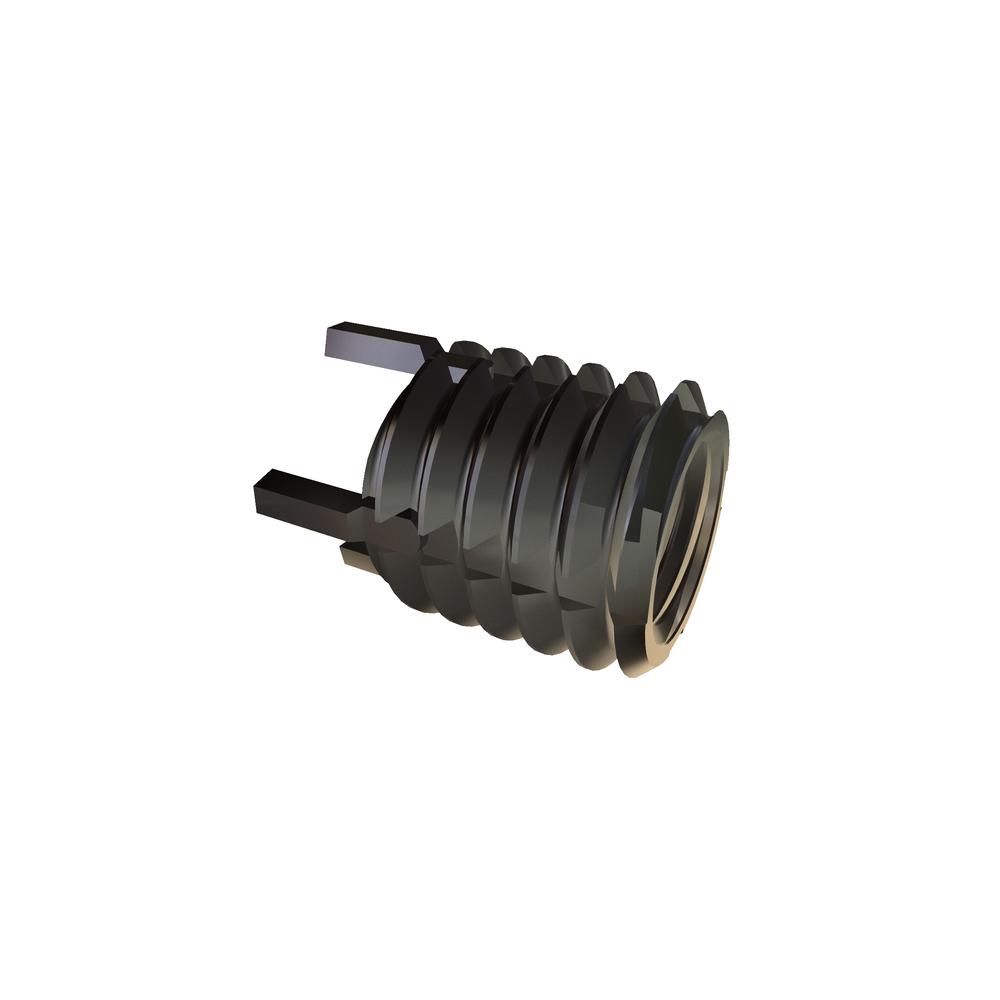

76523
5/16-24 X .43 KEYLOCK INS 7/16-14 303SST
Alternate Codes: 66523, 93340A315, KN524J
MS51830-203 ACME 217-076523
Pricing per Unit
| 1-24 pcs | 25-49 pcs | 50-99 pcs | 100-249 pcs | 250-499 pcs | Call For |
|---|---|---|---|---|---|
| $6.686 | $5.506 | $4.926 | $4.160 | $3.983 | Larger Quantities |
In Stock
| Thread Size | 5/16-24 |
| Material | 303 Stainless Steel |
| Finish | Passivated |
| Units | Inch |
| Nominal Diameter | 0.313in |
| Insert Type | Non Locking |
| Grade | Light Duty |
| Drill Size | 0.397in |
| Brand | ACME INDUSTRIAL |
| Type | Keylock Insert |
| Removal Drill Depth | 0.188in |
| Removal Drill Size | 11/32in |
| Minimum Installation Depth | 0.500in |
| Thread Tap Size | 7/16-14 |
| Self Locking Distance | 0.220in |
| External Thread Nominal Diameter | 0.438in |
| Internal Thread Nominal Diameter | 0.313in |
| Bore Depth | 0.070in |
| Counter Sink Diameter | 0.447in |
| External Thread | 7/16-14 |
