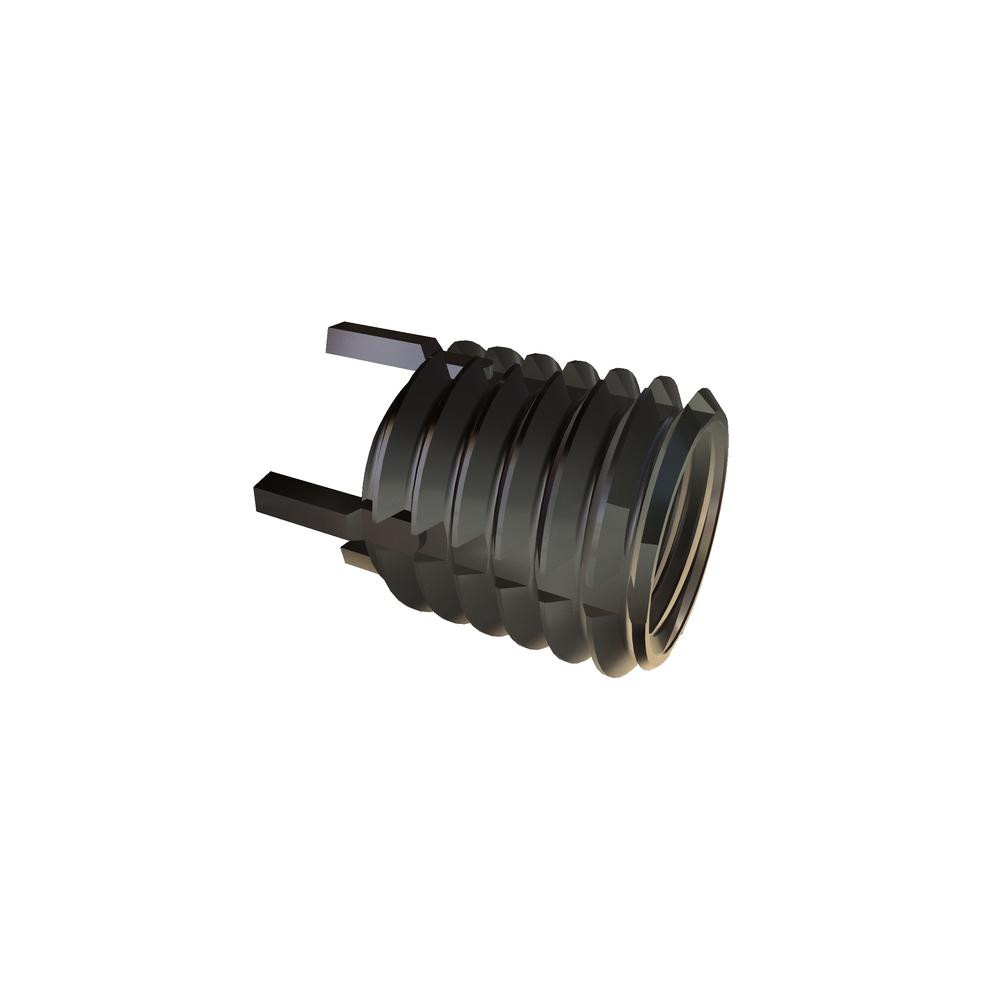

76525
7/16-20 X .56 KEYLOCK INS 9/16-12 303SST
Alternate Codes: 66525, 93340A325, KN720J
Pricing per Unit
| 1-4 pcs | 5-9 pcs | 10-24 pcs | 25-49 pcs | 50-99 pcs |
|---|---|---|---|---|
| $19.294 | $16.400 | $13.667 | $13.120 | $12.148 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | 7/16-20 |
| Material | 303 Stainless Steel |
| Finish | Passivated |
| Units | Inch |
| Nominal Diameter | 0.438in |
| Insert Type | Non Locking |
| Grade | Light Duty |
| Drill Size | 0.516in |
| Brand | ACME INDUSTRIAL |
| Type | Keylock Insert |
| Removal Drill Depth | 0.188in |
| Removal Drill Size | 15/32in |
| Minimum Installation Depth | 0.620in |
| Thread Tap Size | 9/16-12 |
| Self Locking Distance | 0.270in |
| External Thread Nominal Diameter | 0.563in |
| Internal Thread Nominal Diameter | 0.438in |
| Bore Depth | 0.070in |
| Counter Sink Diameter | 0.572in |
| External Thread | 9/16-12 |
