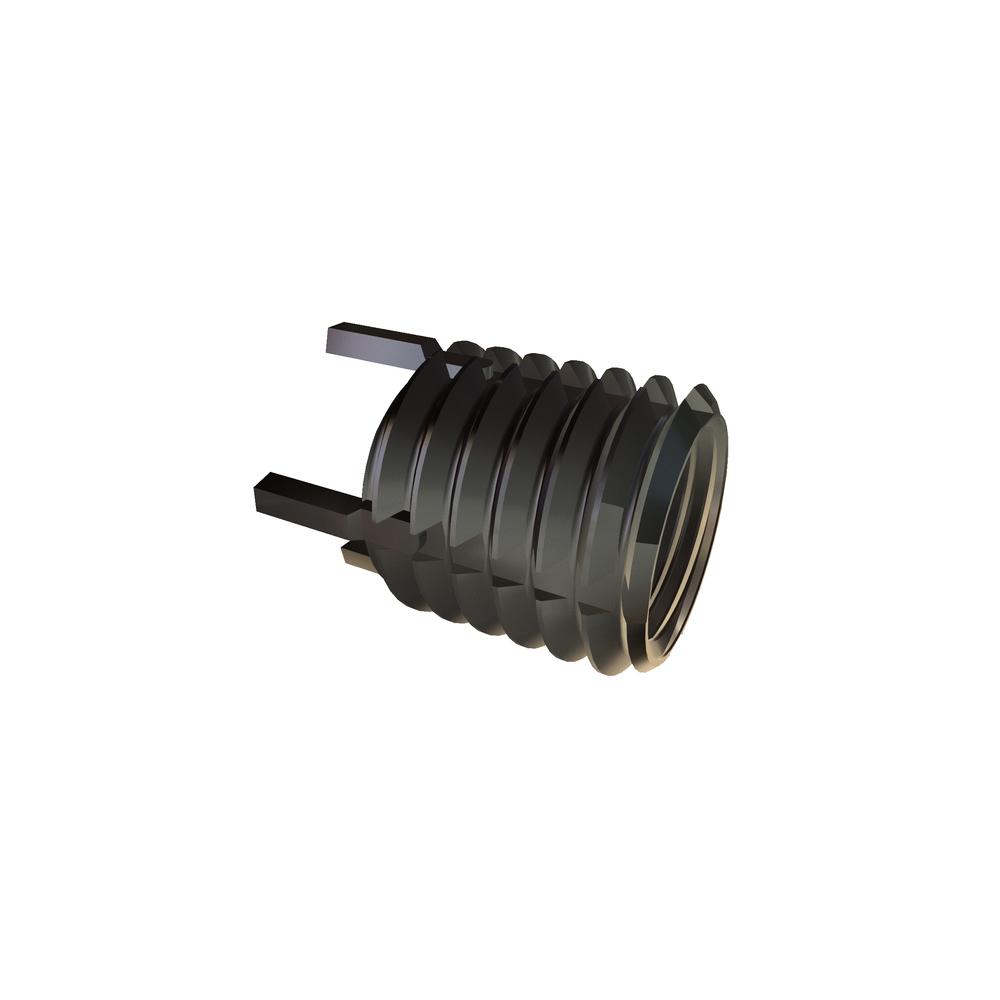

Image for reference purposes only. Actual product may vary.
76526
1/2-20 X .62 KEYLOCK INS 5/8-11 303SST
Alternate Codes: 217-076526, 93340A430, MS51830-206 MILSPEC
MS51830-206 MILSPEC
Pricing per Unit
| 1-24 pcs | 25-49 pcs | 50-99 pcs | 100-249 pcs | 250-499 pcs | Call For |
|---|---|---|---|---|---|
| $13.125 | $10.809 | $9.671 | $8.167 | $7.819 | Larger Quantities |
In Stock
Maximum stock already in cart
| Thread Size | 1/2-20 |
| Finish | Passivated |
| Type | Keylock Insert |
| Brand | ACME INDUSTRIAL |
| Grade | Light Duty |
| Material | 303 Stainless Steel |
| External Thread | 5/8-11 |
| Units | Inch |
| Nominal Diameter | 0.500in |
| Insert Type | Non Locking |
| Drill Size | 0.578in |
| Removal Drill Depth | 0.188in |
| Removal Drill Size | 17/32in |
| Minimum Installation Depth | 0.680in |
| Thread Tap Size | 5/8-11 |
| Self Locking Distance | 0.280in |
| External Thread Nominal Diameter | 0.625in |
| Internal Thread Nominal Diameter | 0.500in |
| Bore Depth | 0.070in |
| Counter Sink Diameter | 0.635in |
