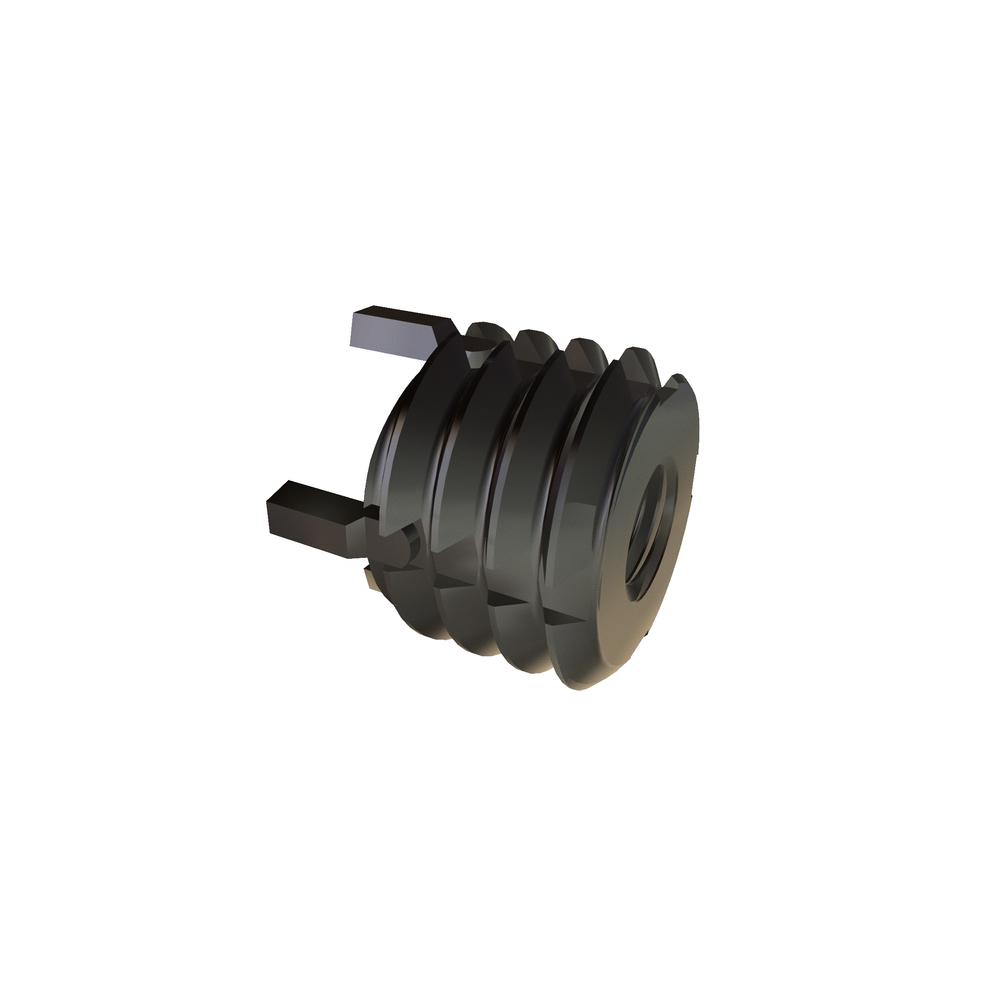

76533
10-32 X .31 KEYLOCK INS 7/16-14 303SST
Alternate Codes: MS51832-201
Pricing per Unit
| 1-24 pcs | 25-49 pcs | 50-99 pcs | 100-249 pcs | 250-499 pcs | Call For |
|---|---|---|---|---|---|
| $12.821 | $10.559 | $9.447 | $7.978 | $7.638 | Larger Quantities |
In Stock
| Thread Size | 10-32 |
| Material | 303 Stainless Steel |
| Finish | Passivated |
| Units | Inch |
| Nominal Diameter | 0.190in |
| Insert Type | Non Locking |
| Grade | Extra Heavy Duty |
| Drill Size | 0.397in |
| Brand | ACME INDUSTRIAL |
| Type | Keylock Insert |
| Removal Drill Depth | 0.188in |
| Removal Drill Size | 11/32in |
| Minimum Installation Depth | 0.370in |
| Thread Tap Size | 7/16-14 |
| Self Locking Distance | 0.220in |
| External Thread Nominal Diameter | 0.438in |
| Internal Thread Nominal Diameter | 0.190in |
| Bore Depth | 0.070in |
| Counter Sink Diameter | 0.447in |
| External Thread | 7/16-14 |
