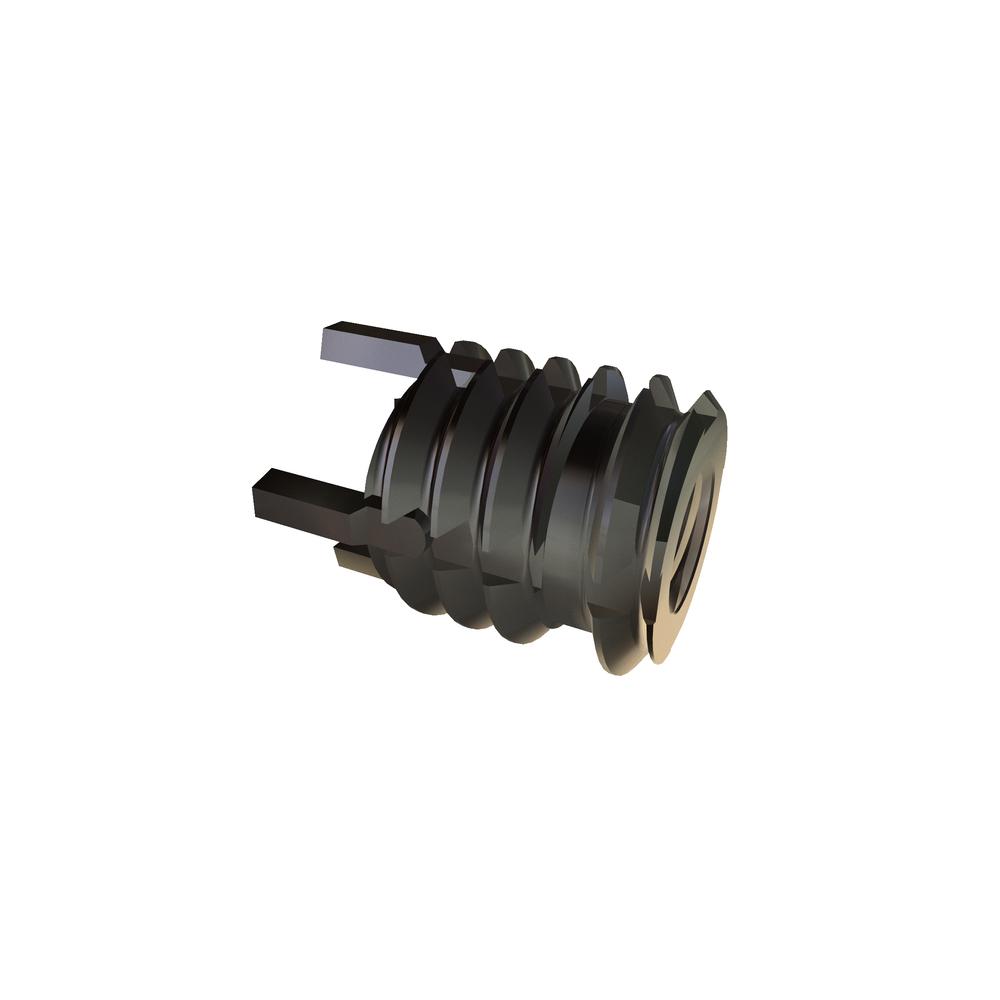

77300
8-32 X .31 LKG KEYLOCK INS 5/16-18
Alternate Codes: KNHL0832J, NAS1395C08L
303SST
Pricing per Unit
| 1-24 pcs | 25-49 pcs | 50-99 pcs | 100-249 pcs | 250-499 pcs | Call For |
|---|---|---|---|---|---|
| $9.714 | $8.000 | $7.158 | $6.044 | $5.787 | Larger Quantities |
In Stock
| Thread Size | 8-32 |
| Material | Stainless Steel |
| Finish | Passivated |
| Units | Inch |
| Nominal Diameter | 0.164in |
| Insert Type | Self Locking |
| Grade | Heavy Duty |
| Drill Size | 0.272in |
| Brand | ACME INDUSTRIAL |
| Type | Locking Keylock Insert |
| Removal Drill Depth | 0.125in |
| Removal Drill Size | 7/32in |
| Minimum Installation Depth | 0.370in |
| Thread Tap Size | 5/16-18 |
| Self Locking Distance | 0.220in |
| External Thread Nominal Diameter | 0.313in |
| Internal Thread Nominal Diameter | 0.164in |
| Bore Depth | 0.040in |
| Counter Sink Diameter | 0.323in |
| External Thread | 5/16-18 |
