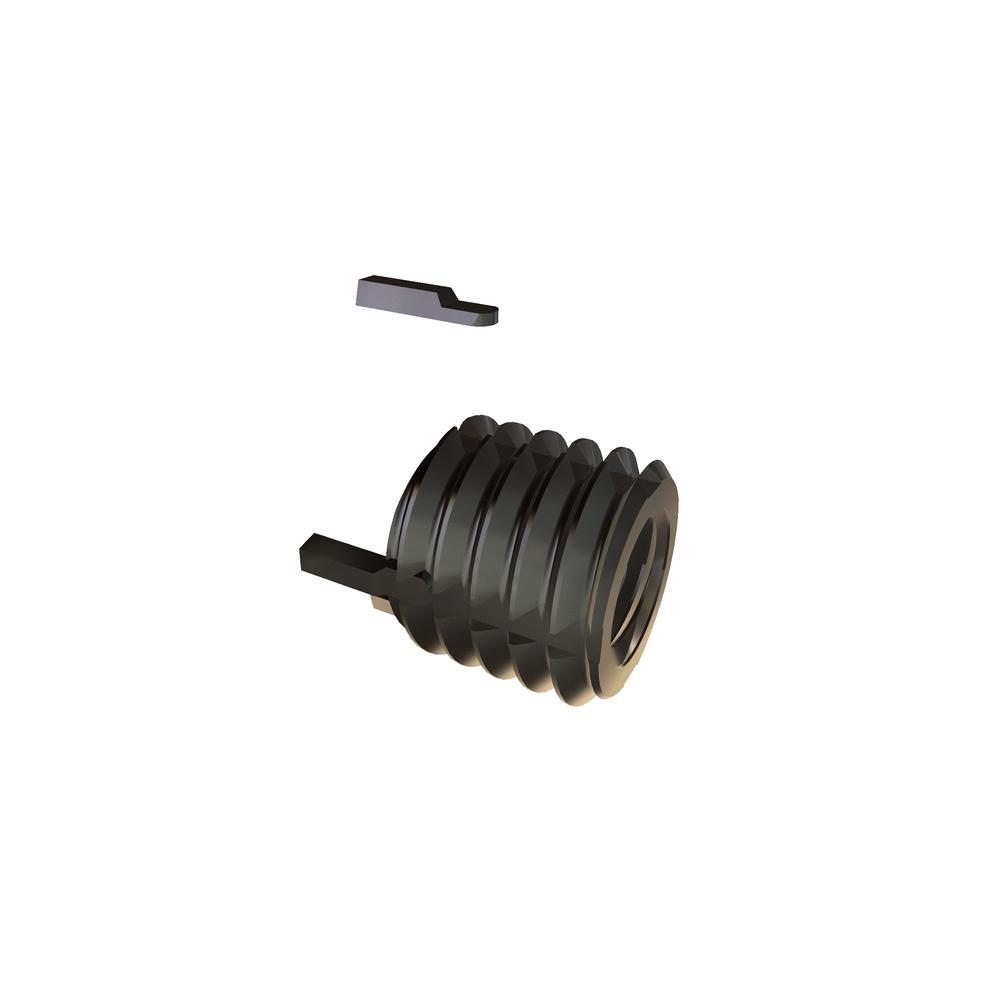

5/16-18 X .43 LKG KYLK INS 1/2-13
77303
| Item Id | 77303 |
| Description | 5/16-18 X .43 LKG KYLK INS 1/2-13 |
| Alternate Codes | MS51831-103L |
| Extended Description | 303 SST RoHS MS51831-103L |
| Packaging | EA |
| Bore Depth | 0.070in |
| Brand | ACME INDUSTRIAL |
| Counter Sink Diameter | 0.510in |
| Drill Size | 0.453in |
| External Thread | 1/2-13 |
| External Thread Nominal Diameter | 0.500in |
| Finish | Passivated |
| Grade | Heavy Duty |
| Insert Type | Non Locking |
| Internal Thread Nominal Diameter | 0.313in |
| Material | Stainless Steel |
| Minimum Installation Depth | 0.500in |
| Nominal Diameter | 0.313in |
| Removal Drill Depth | 0.188in |
| Removal Drill Size | 13/32in |
| Self Locking Distance | 0.220in |
| Thread Size | 5/16-18 |
| Thread Tap Size | 1/2-13 |
| Type | Locking Keylock Insert |
| Units | Inch |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
