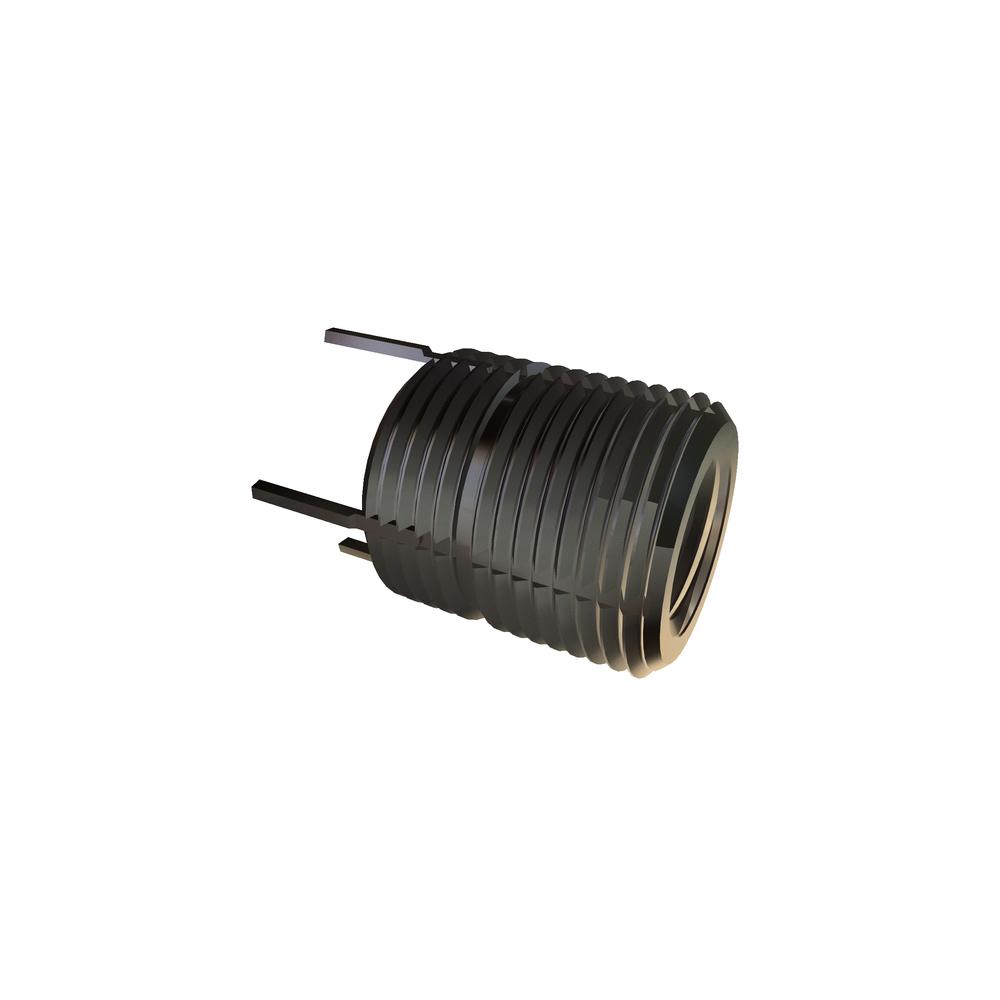

Image for reference purposes only. Actual product may vary.
77309
3/4-10 X 1.12 LKG KEYLOCK INS 1 1/8-12
Alternate Codes: MS51831-109L
303SST
Pricing per Unit
| 1-4 pcs | 5-9 pcs | 10-24 pcs | 25-49 pcs | 50-99 pcs | Call For |
|---|---|---|---|---|---|
| $33.177 | $28.200 | $23.500 | $22.560 | $20.889 | Larger Quantities |
In Stock
Maximum stock already in cart
| Thread Size | 3/4-10 |
| Finish | Passivated |
| Type | Locking Keylock Insert |
| Brand | ACME INDUSTRIAL |
| Grade | Heavy Duty |
| Material | Stainless Steel |
| External Thread | 1 1/8-12 |
| Units | Inch |
| Nominal Diameter | 0.750in |
| Insert Type | Self Locking |
| Drill Size | 1.062in |
| Thread Tap Size | 1 1/8-12 |
| Self Locking Distance | 0.490in |
| External Thread Nominal Diameter | 1.125in |
| Internal Thread Nominal Diameter | 0.750in |
| Bore Depth | 0.100in |
