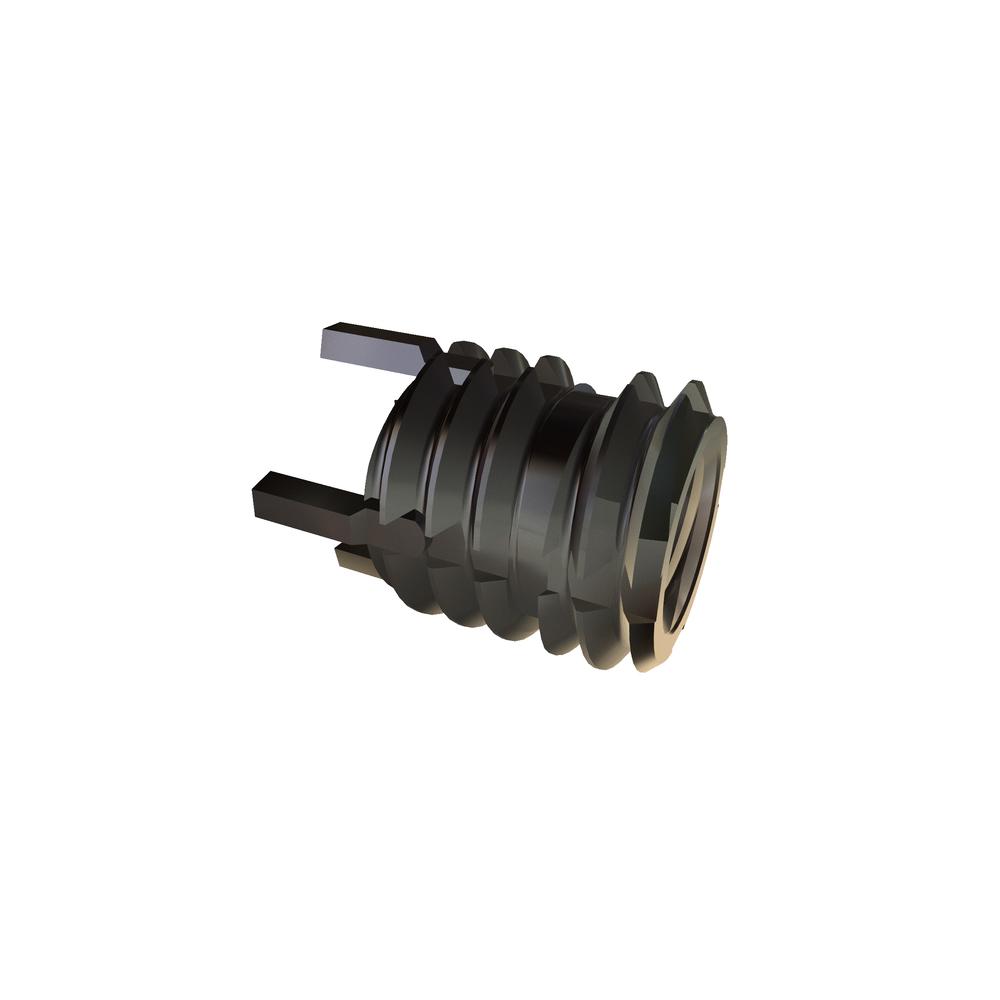

Image for reference purposes only. Actual product may vary.
77322
1/4-20 X .37 LKG KEYLOCK INS 3/8-16
Alternate Codes: 217-077322, KNL420J HOWMET, MS51830-106L MILSPEC
MS51830-106L
Pricing per Unit
| 1-24 pcs | 25-49 pcs | 50-99 pcs | 100-249 pcs | 250-499 pcs | Call For |
|---|---|---|---|---|---|
| $13.314 | $10.965 | $9.811 | $8.284 | $7.932 | Larger Quantities |
In Stock
Maximum stock already in cart
| Thread Size | 1/4-20 |
| Finish | Passivated |
| Type | Locking Keylock Insert |
| Brand | ACME INDUSTRIAL |
| Grade | Light Duty |
| Material | Stainless Steel |
| External Thread | 3/8-16 |
| Units | Inch |
| Nominal Diameter | 0.250in |
| Insert Type | Self Locking |
| Drill Size | 0.332in |
| Removal Drill Depth | 0.188in |
| Removal Drill Size | 9/32in |
| Minimum Installation Depth | 0.430in |
| Thread Tap Size | 3/8-16 |
| Self Locking Distance | 0.220in |
| External Thread Nominal Diameter | 0.375in |
| Internal Thread Nominal Diameter | 0.250in |
| Bore Depth | 0.070in |
| Counter Sink Diameter | 0.385in |
