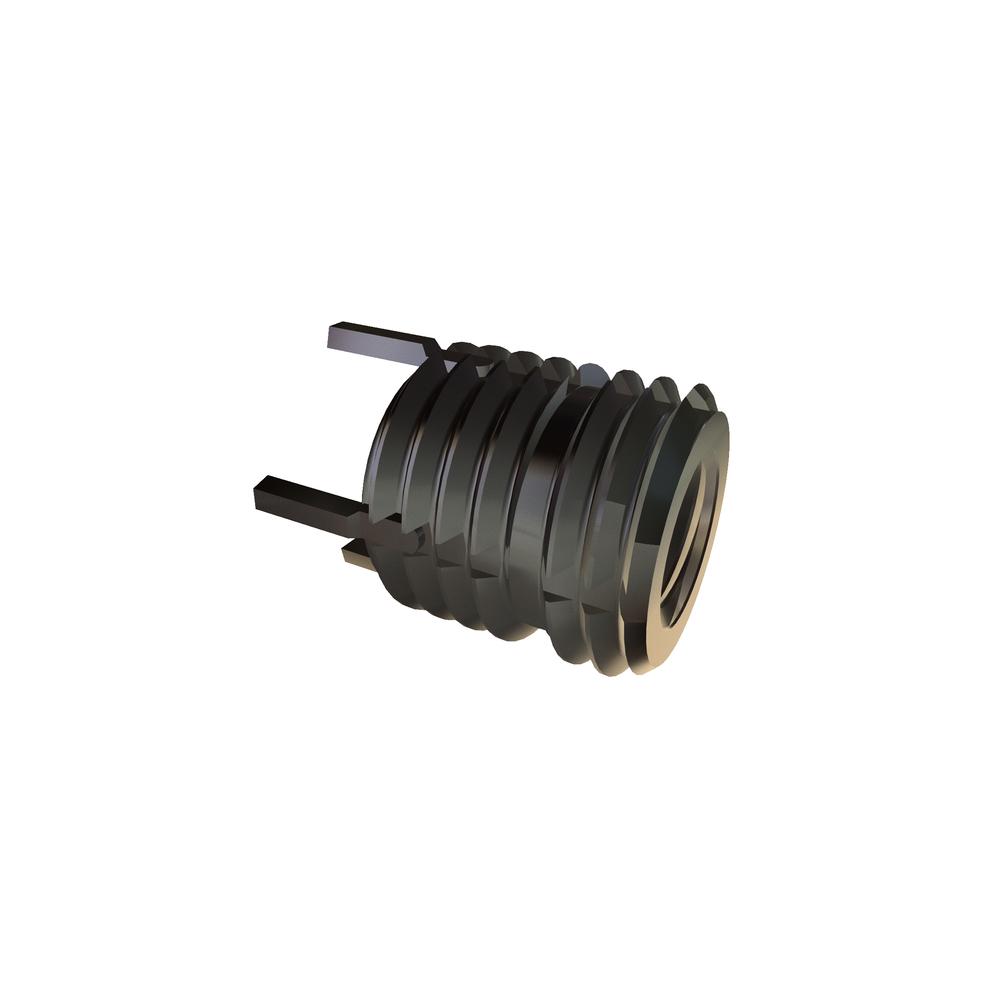

Image for reference purposes only. Actual product may vary.
77352
M6-1.0 X 10.0 LKG KEYLOCK INS M10-1.25
Alternate Codes: KNML6X1.0
303SST
Pricing per Unit
| 1-4 pcs | 5-9 pcs | 10-24 pcs | 25-49 pcs | 50-99 pcs |
|---|---|---|---|---|
| $14.882 | $12.650 | $10.542 | $10.120 | $9.370 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| Thread Size | M6x1 |
| Finish | Passivated |
| Type | Locking Keylock Insert |
| Brand | ACME INDUSTRIAL |
| Grade | Light Duty |
| Material | Stainless Steel |
| External Thread | M10-1.25 |
| Units | Metric |
| Nominal Diameter | 6.00 mm |
| Insert Type | Self Locking |
| Drill Size | 8.8 mm |
| Removal Drill Depth | 4.75 mm |
| Removal Drill Size | 7.5 mm |
| Minimum Installation Depth | 11.50 mm |
| Thread Tap Size | M10-1.25 |
| Self Locking Distance | 6.02 mm |
| External Thread Nominal Diameter | 10.00 mm |
| Internal Thread Nominal Diameter | 6.00 mm |
| Bore Depth | 1.78 mm |
| Counter Sink Diameter | 10.25 mm |
