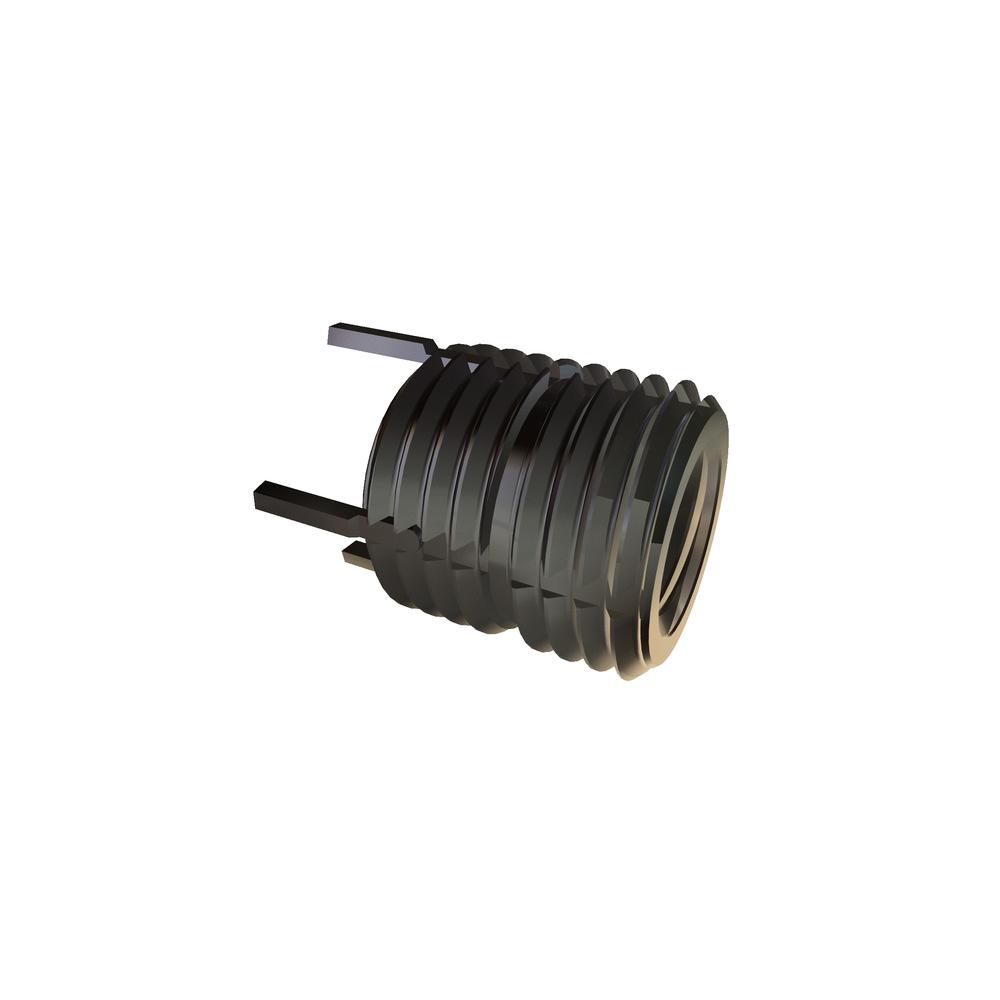

Image for reference purposes only. Actual product may vary.
77353
M8-1.25 X 12.0 LKG KEYLOCK INS M12-1.25
Alternate Codes: KNML8X1.25
303SST
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | M8x1.25 |
| Finish | Passivated |
| Type | Locking Keylock Insert |
| Brand | ACME INDUSTRIAL |
| Grade | Light Duty |
| Material | Stainless Steel |
| External Thread | M12-1.25 |
| Units | Metric |
| Nominal Diameter | 8.00 mm |
| Insert Type | Self Locking |
| Drill Size | 10.8 mm |
| Removal Drill Depth | 4.75 mm |
| Removal Drill Size | 9.5 mm |
| Minimum Installation Depth | 13.50 mm |
| Thread Tap Size | M12-1.25 |
| Self Locking Distance | 6.28 mm |
| External Thread Nominal Diameter | 12.00 mm |
| Internal Thread Nominal Diameter | 8.00 mm |
| Bore Depth | 1.78 mm |
| Counter Sink Diameter | 12.25 mm |
