77364

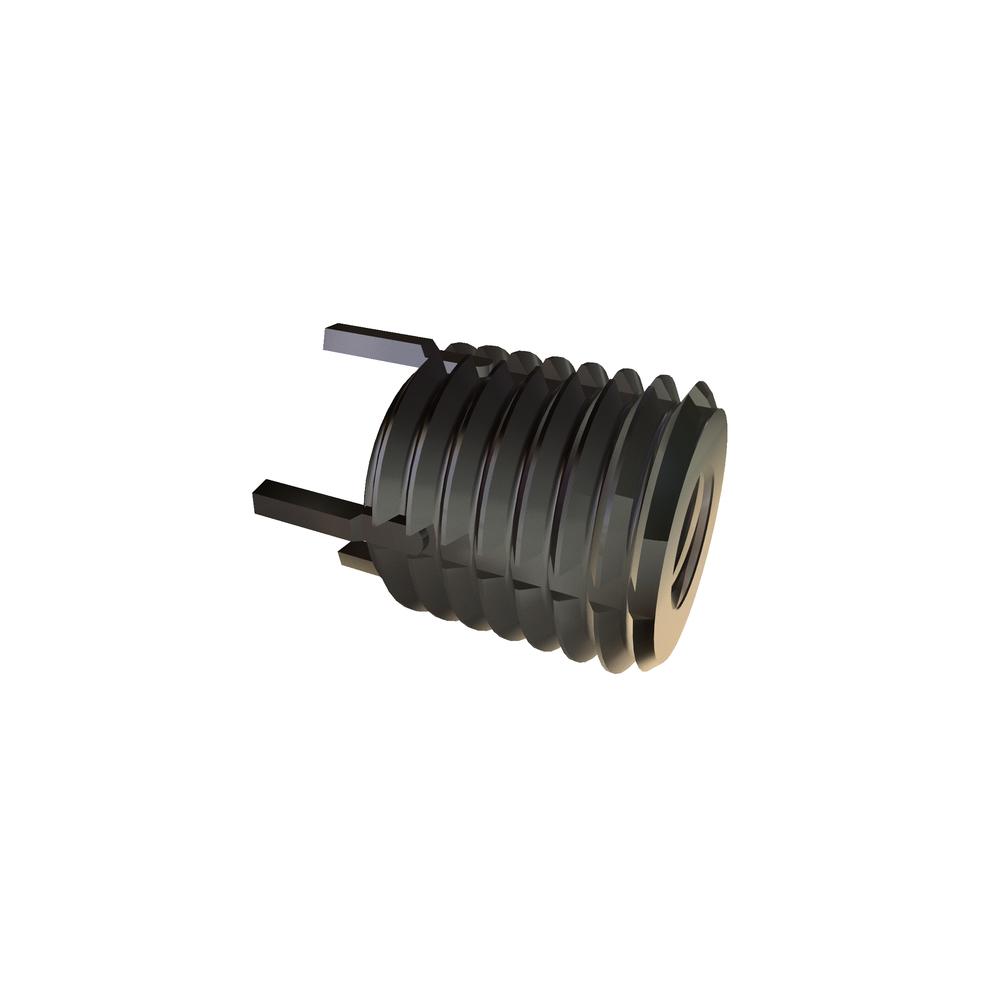

M5-0.8 X 10.0 LKG KEYLOCK INS M10-1.25
Alternate Codes: KNHML5X0.8
303SST
Pricing per Unit
| 1-4 pcs | 5-9 pcs | 10-24 pcs |
|---|---|---|
| $22.412 | $19.050 | $15.875 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | M5x0.8 |
| Material | Stainless Steel |
| Finish | Passivated |
| Units | Metric |
| Nominal Diameter | 5.00 mm |
| Insert Type | Self Locking |
| Grade | Heavy Duty |
| Drill Size | 8.8 mm |
| Brand | ACME INDUSTRIAL |
| Type | Locking Keylock Insert |
| Removal Drill Depth | 4.75 mm |
| Removal Drill Size | 7.5 mm |
| Minimum Installation Depth | 12.50 mm |
| Thread Tap Size | M10-1.25 |
| Self Locking Distance | 5.50 mm |
| External Thread Nominal Diameter | 10.00 mm |
| Internal Thread Nominal Diameter | 5.00 mm |
| Bore Depth | 1.27 mm |
| Counter Sink Diameter | 10.25 mm |
| External Thread | M10-1.25 |
