Image for reference purposes only. Actual product may vary.
77366

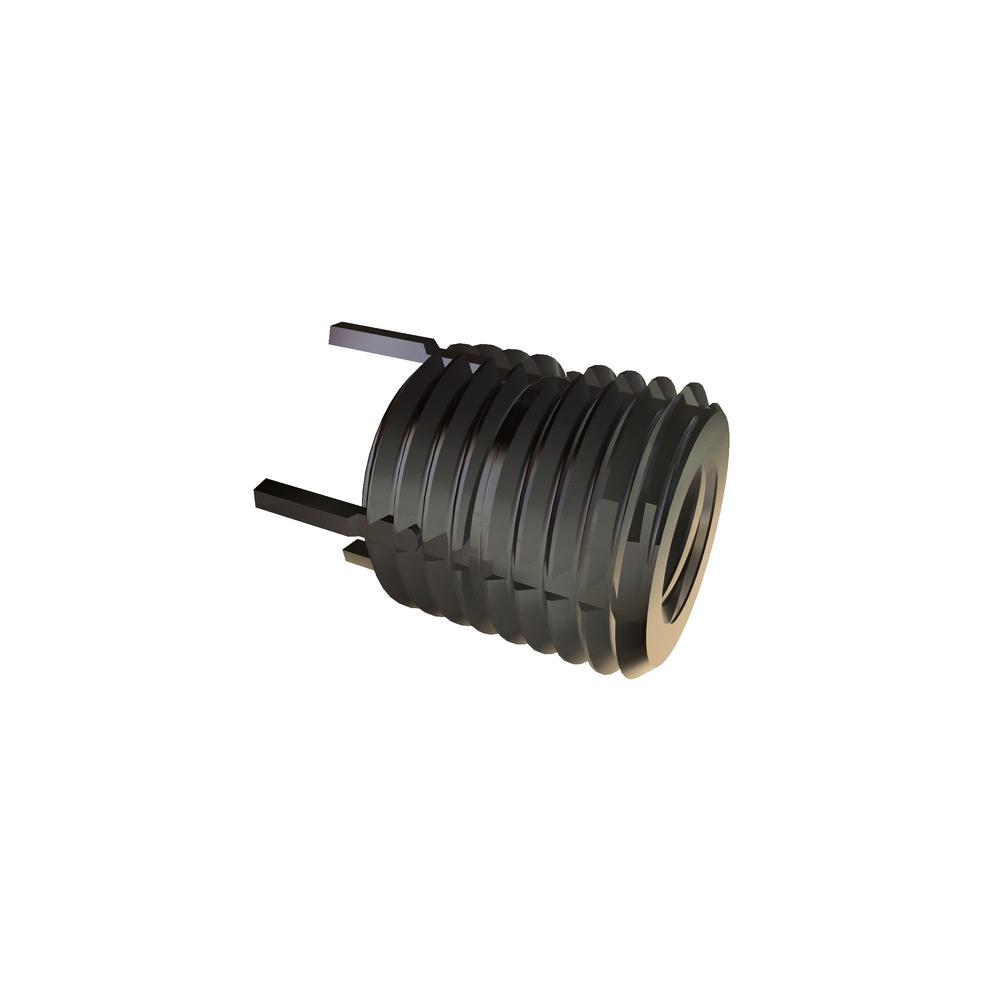

M8-1.25 X 14.0 LKG KEYLOCK INS M14-1.5
Alternate Codes: 217-077366, KNHML8X1.25
303SST. ACME INDUSTRIAL 217-077366
Pricing per Unit
| 1-4 pcs | 5-9 pcs | 10-24 pcs |
|---|---|---|
| $26.353 | $22.400 | $18.667 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| Thread Size | M8x1.25 |
| Finish | Passivated |
| Type | Locking Keylock Insert |
| Brand | ACME INDUSTRIAL |
| Grade | Heavy Duty |
| Material | Stainless Steel |
| External Thread | M14-1.5 |
| Units | Metric |
| Nominal Diameter | 8.00 mm |
| Insert Type | Self Locking |
| Drill Size | 12.8 mm |
| Removal Drill Depth | 4.75 mm |
| Removal Drill Size | 11.5 mm |
| Minimum Installation Depth | 16.50 mm |
| Thread Tap Size | M14-1.5 |
| Self Locking Distance | 6.46 mm |
| External Thread Nominal Diameter | 14.00 mm |
| Internal Thread Nominal Diameter | 8.00 mm |
| Bore Depth | 1.78 mm |
| Counter Sink Diameter | 14.25 mm |
