Image for reference purposes only. Actual product may vary.
77504

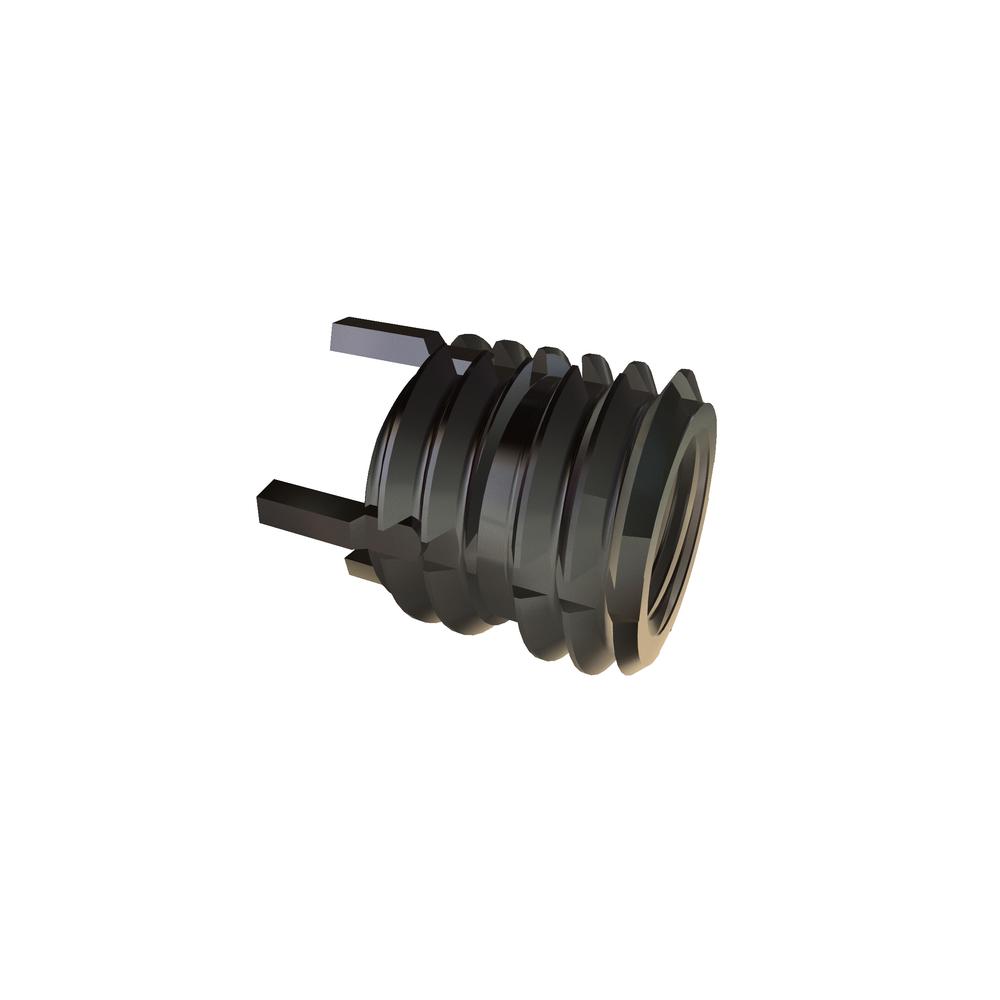

3/8-24 X .50 LKG KEYLOCK INS 9/16-12
Alternate Codes: KNHL624J, KNHL624J HOWMET, MS51831-204L MILSPEC
303SST MS51831-204L
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | 3/8-24 |
| Finish | Passivated |
| Type | Locking Keylock Insert |
| Brand | ACME INDUSTRIAL |
| Grade | Heavy Duty |
| Material | Stainless Steel |
| External Thread | 9/16-12 |
| Units | Inch |
| Nominal Diameter | 0.375in |
| Insert Type | Self Locking |
| Drill Size | 0.516in |
| Removal Drill Depth | 0.188in |
| Removal Drill Size | 15/32in |
| Minimum Installation Depth | 0.560in |
| Thread Tap Size | 9/16-12 |
| Self Locking Distance | 0.250in |
| External Thread Nominal Diameter | 0.563in |
| Internal Thread Nominal Diameter | 0.375in |
| Bore Depth | 0.070in |
| Counter Sink Diameter | 0.572in |
