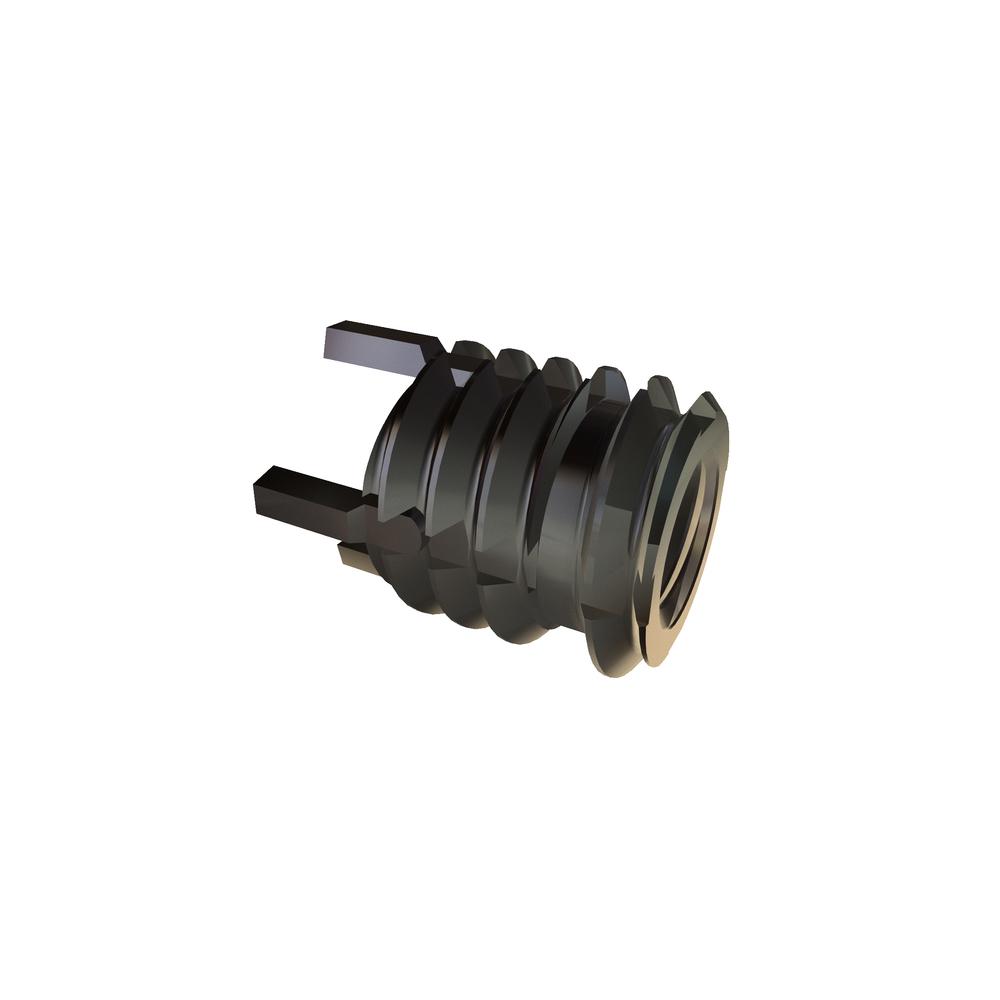

Image for reference purposes only. Actual product may vary.
77521
10-32 X .31 LKG KEYLOCK INS 5/16-18
Alternate Codes: 217-077521, KNL1032J HOWMET, MS51830-201L MILSPEC
303SST MS51830-201L NAS1394C3L
Pricing per Unit
| 1-24 pcs | 25-49 pcs | 50-99 pcs | 100-249 pcs | 250-499 pcs | Call For |
|---|---|---|---|---|---|
| $12.939 | $10.656 | $9.534 | $8.051 | $7.709 | Larger Quantities |
In Stock
Maximum stock already in cart
| Thread Size | 10-32 |
| Finish | Passivated |
| Type | Locking Keylock Insert |
| Brand | ACME INDUSTRIAL |
| Grade | Light Duty |
| Material | Stainless Steel |
| External Thread | 5/16-18 |
| Units | Inch |
| Nominal Diameter | 0.190in |
| Insert Type | Self Locking |
| Drill Size | 0.272in |
| Removal Drill Depth | 0.156in |
| Removal Drill Size | 7/32in |
| Minimum Installation Depth | 0.370in |
| Thread Tap Size | 5/16-18 |
| Self Locking Distance | 0.220in |
| External Thread Nominal Diameter | 0.313in |
| Internal Thread Nominal Diameter | 0.190in |
| Bore Depth | 0.070in |
| Counter Sink Diameter | 0.323in |
