77523

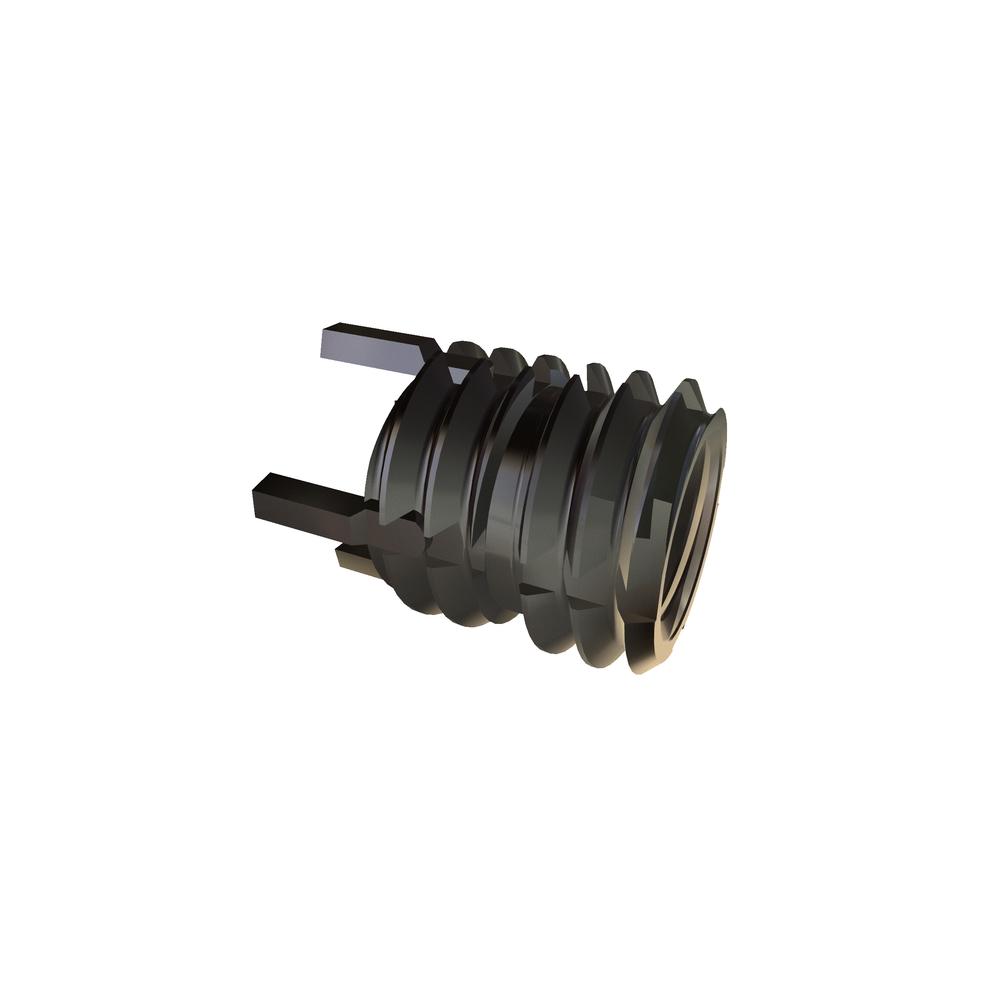

5/16-24 X .43 LKG KEYLOCK INS 7/16-14
Alternate Codes: 217-077523, KNL524J HOWMET, MS51830-203L, NAS1394C5L
MS51830-203L RoHS
Pricing per Unit
| 1-24 pcs | 25-49 pcs |
|---|---|
| $8.643 | $7.118 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | 5/16-24 |
| Material | Stainless Steel |
| Finish | Passivated |
| Units | Inch |
| Nominal Diameter | 0.313in |
| Insert Type | Self Locking |
| Grade | Light Duty |
| Drill Size | 0.397in |
| Brand | ACME INDUSTRIAL |
| Type | Locking Keylock Insert |
| Removal Drill Depth | 0.188in |
| Removal Drill Size | 11/32in |
| Minimum Installation Depth | 0.500in |
| Thread Tap Size | 7/16-14 |
| Self Locking Distance | 0.220in |
| External Thread Nominal Diameter | 0.438in |
| Internal Thread Nominal Diameter | 0.313in |
| Bore Depth | 0.070in |
| Counter Sink Diameter | 0.447in |
| External Thread | 7/16-14 |
