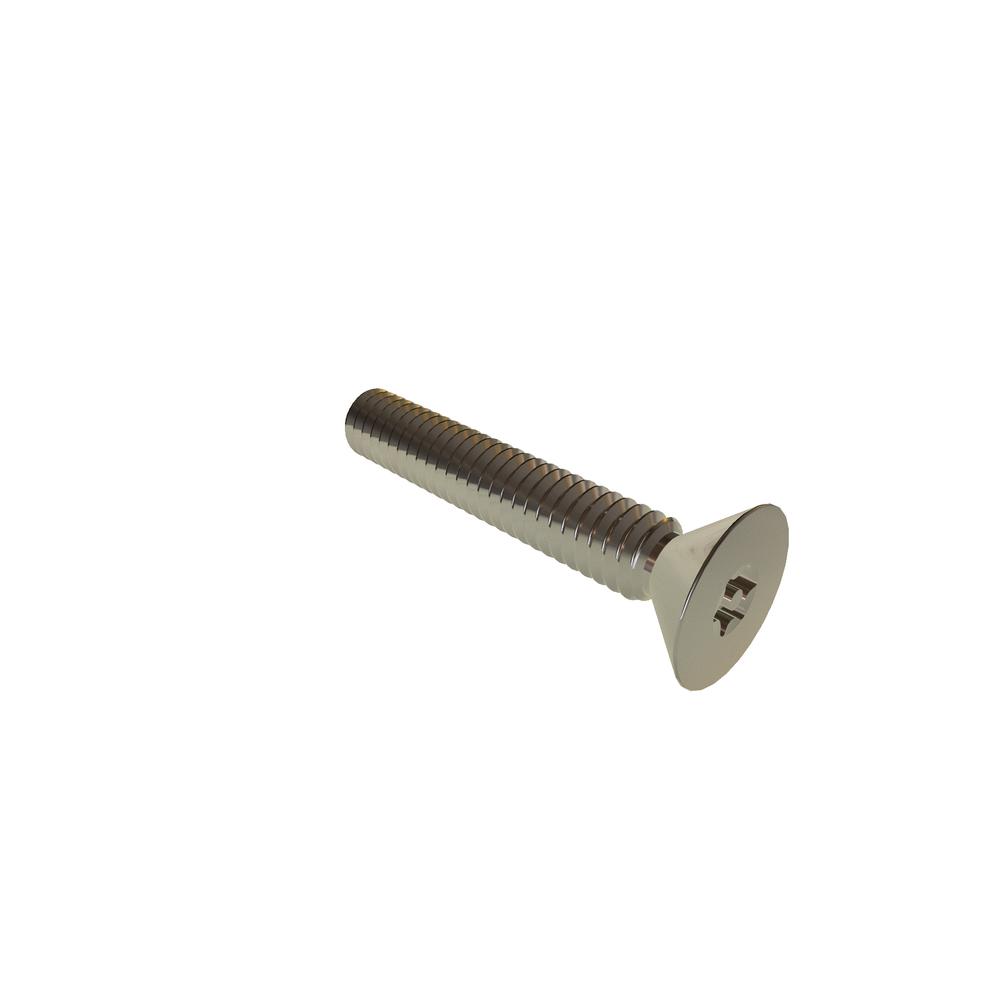

8C100FHXS/T
8-32 X 1 FLAT TORX T-R SST RoHS
Alternate Codes: 91570, 91870A199
Pricing per Unit
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | 8-32 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.164in |
| Head Type | Flat |
| Drive Type | Torx |
| Drive Size | T15 |
| Recess Diameter | 0.132in |
| Recess Depth (Min.) | 0.040in |
| Recess Depth (Max.) | 0.051in |
| Pin Diameter | 0.038in |
| Brand | VARIED |
| Additional Industry Cross Reference | 91870A199 |
| Length | 1.00in |
| RoHS | Compliant |
| Head Diameter (Max.) | 0.312in |
| Head Diameter (Min.) | 0.285in |
| Head Height (Max.) | 0.100in |
