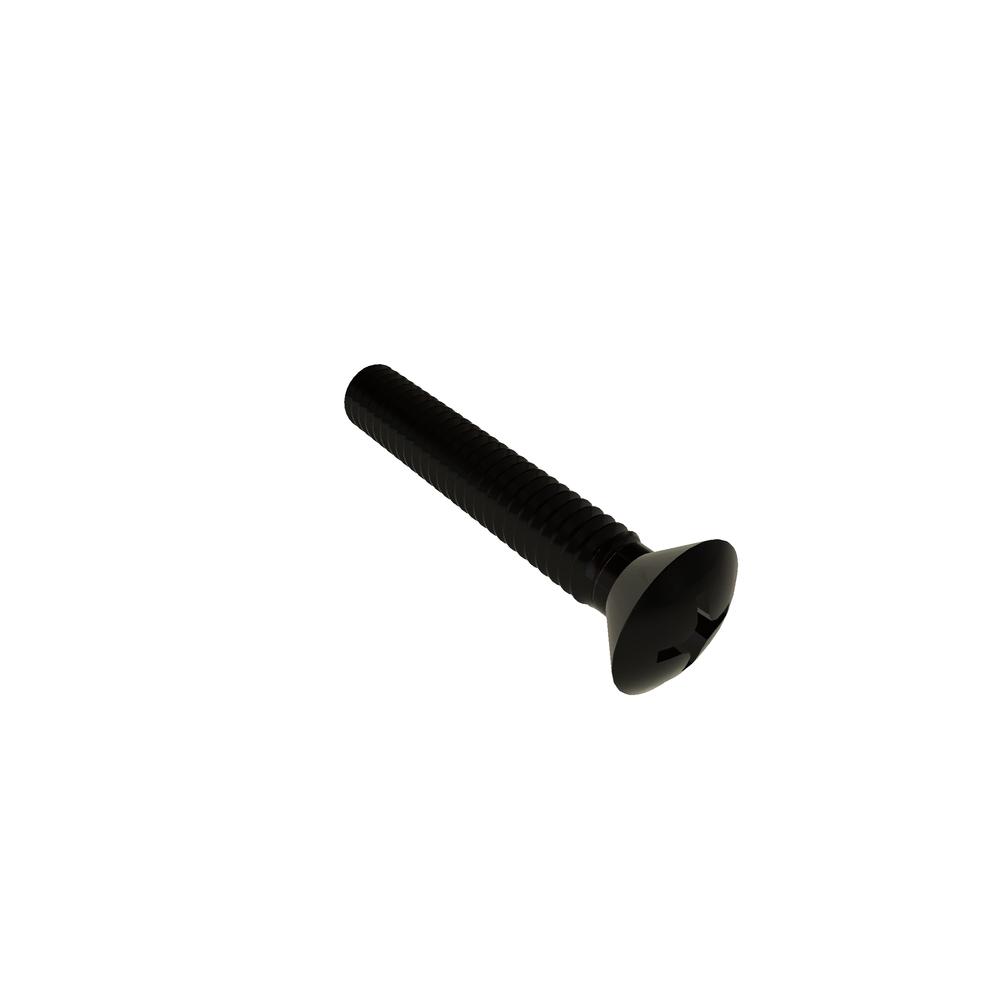

8C100POMZB
8-32 X 1 PHIL OVAL STL BLK RoHS
Alternate Codes: N/A
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | 8-32 |
| Material | Steel |
| Finish | Black Oxide |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.164in |
| Head Type | Oval |
| Drive Type | Phillips |
| Recess Diameter | 0.186in |
| Slot Depth (Min.) | 0.072in |
| Slot Depth (Max.) | 0.088in |
| Slot Width (Min.) | 0.045in |
| Slot Width (Max.) | 0.054in |
| Head Side Height (Ref.) | 0.100in |
| Head Height | 0.152in |
| Recess Depth (Min.) | 0.084in |
| Recess Depth (Max.) | 0.108in |
| Brand | VARIED |
| Length | 1.00in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.312in |
| Head Diameter (Min.) | 0.285in |
| Crown Height | 0.052in |
