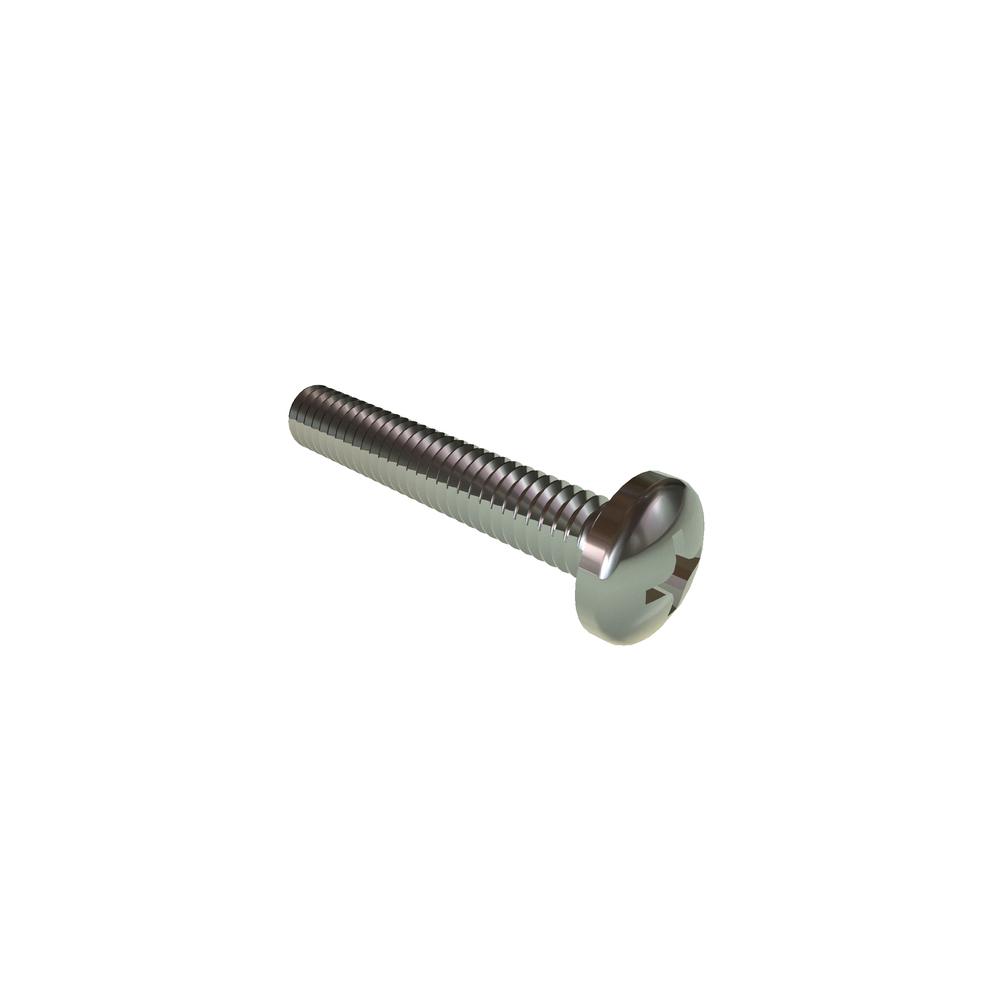

8C100PPMS
8-32 X 1 PH PAN SST RoHS
Alternate Codes: 005327, 2505382, 477-0050, 581918-16, 613-5107, FSE-06-6A, P4886
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.267 | $0.141 | $0.111 | $0.103 | $0.086 | Larger Quantities |
In Stock
| Thread Size | 8-32 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.164in |
| Head Type | Pan |
| Drive Type | Phillips |
| Drive Size | 2 |
| Recess Diameter | 0.175in |
| Head Radius (Min.) | 0.015in |
| Recess Depth (Min.) | 0.071in |
| Recess Depth (Max.) | 0.097in |
| Brand | VARIED |
| Additional Industry Cross Reference | 91772A199 |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.322in |
| Head Diameter (Min.) | 0.306in |
| Head Height (Max.) | 0.115in |
| Head Height (Min.) | 0.105in |
