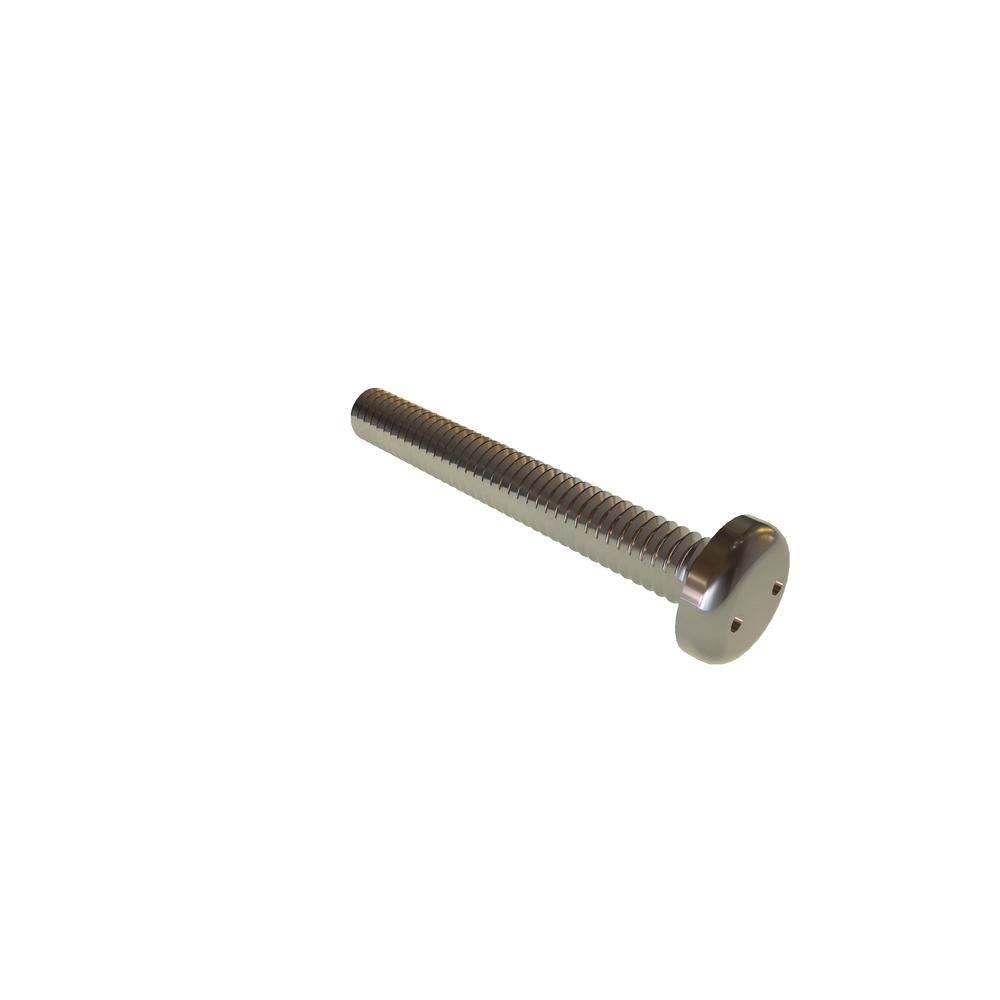

8C125DSPS
8-32 X 1 1/4 DRILLED SPANNER PAN
Alternate Codes: 94066A201
HD SST RoHS
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | 8-32 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.164in |
| Head Type | Pan |
| Drive Type | Drilled Spanner |
| Drive Size | 8 |
| Head Radius (Min.) | 0.052in |
| Recess Depth | 0.070in |
| Brand | VARIED |
| Additional Industry Cross Reference | 94066A201 |
| Length | 1.25in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.322in |
| Head Diameter (Min.) | 0.306in |
| Head Height (Max.) | 0.096in |
| Head Height (Min.) | 0.085in |
| Center to center | 0.156in |
