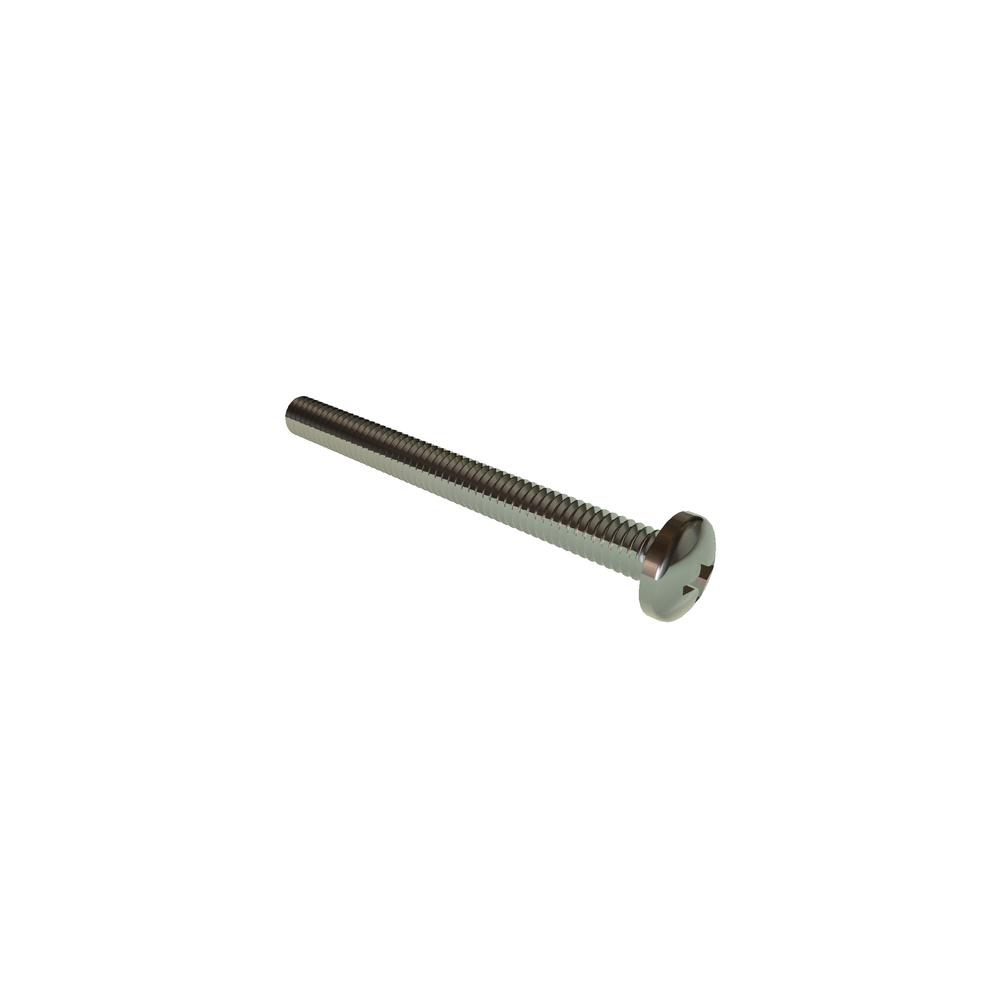

8C175PPMS
8-32 X 1 3/4 PH PAN SST RoHS
Alternate Codes: 1000-0127, 12-222008-26, FSE-07-2, MS51957-52
Pricing per Unit
| 1-99 pcs | 100-249 pcs |
|---|---|
| $0.468 | $0.246 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.164in |
| Head Type | Pan |
| Drive Type | Phillips |
| Drive Size | 2 |
| Recess Diameter | 0.175in |
| Head Radius (Min.) | 0.015in |
| Recess Depth (Min.) | 0.071in |
| Recess Depth (Max.) | 0.097in |
| Brand | VARIED |
| Additional Industry Cross Reference | 91772A204 |
| Length | 1.75in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.322in |
| Head Diameter (Min.) | 0.306in |
| Head Height (Max.) | 0.115in |
| Head Height (Min.) | 0.105in |
