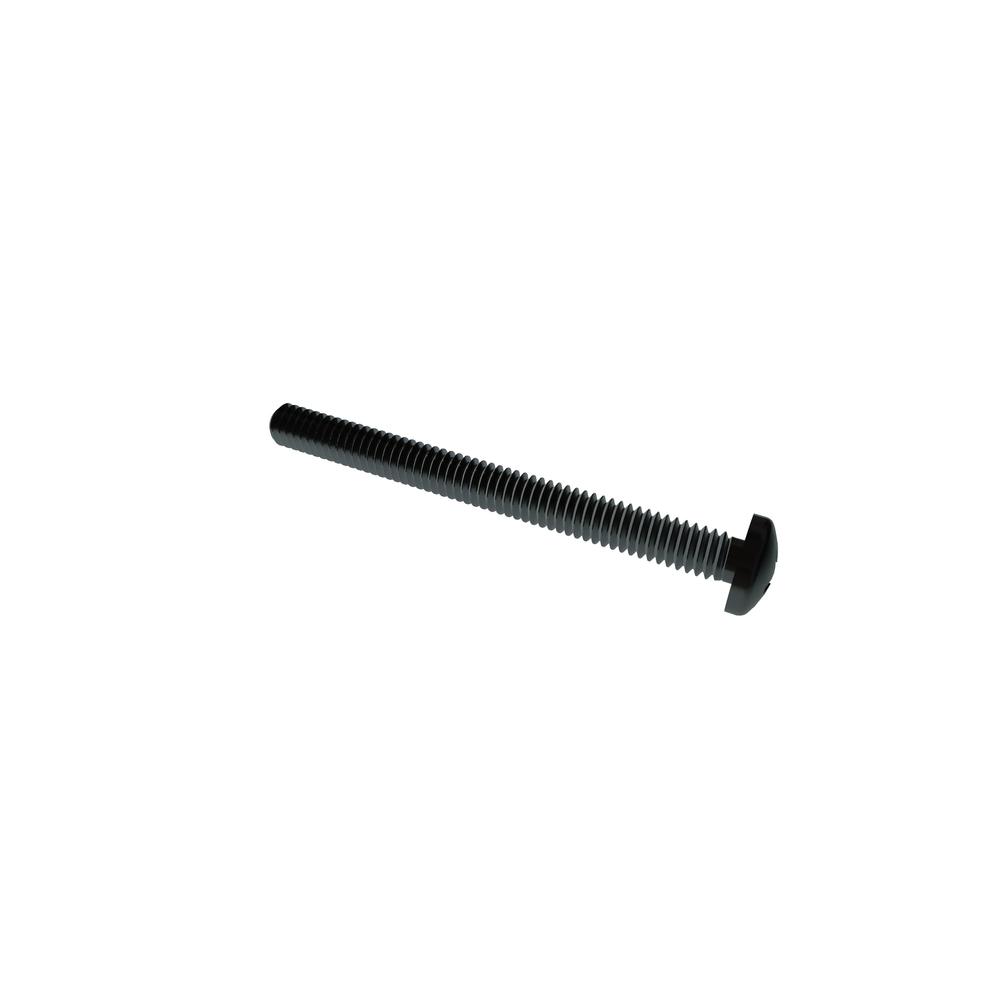

8-32 X 1 3/4 PH PAN STL ZN CR3
8C175PPMZR
| Item Id | 8C175PPMZR |
| Description | 8-32 X 1 3/4 PHIL PAN STL ZN RoHS |
| Alternate Codes | 7270804 |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 90272A204 |
| Brand | VARIED |
| Drive Size | 2 |
| Drive Type | Phillips |
| Finish | Zinc Cr3 |
| Head Diameter (Max.) | 0.322in |
| Head Diameter (Min.) | 0.306in |
| Head Height (Max.) | 0.115in |
| Head Height (Min.) | 0.105in |
| Head Radius (Min.) | 0.015in |
| Head Type | Pan |
| Length | 1.75in |
| Material | Steel |
| Meets (Standard) | ASME B18.6.3 |
| Nominal Diameter | 0.164in |
| Recess Depth (Max.) | 0.097in |
| Recess Depth (Min.) | 0.071in |
| Recess Diameter | 0.175in |
| RoHS | Compliant |
| Thread Size | 8-32 |
| Thread Type | Unified Coarse Thread (UNC) |
| Units | Inch |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
