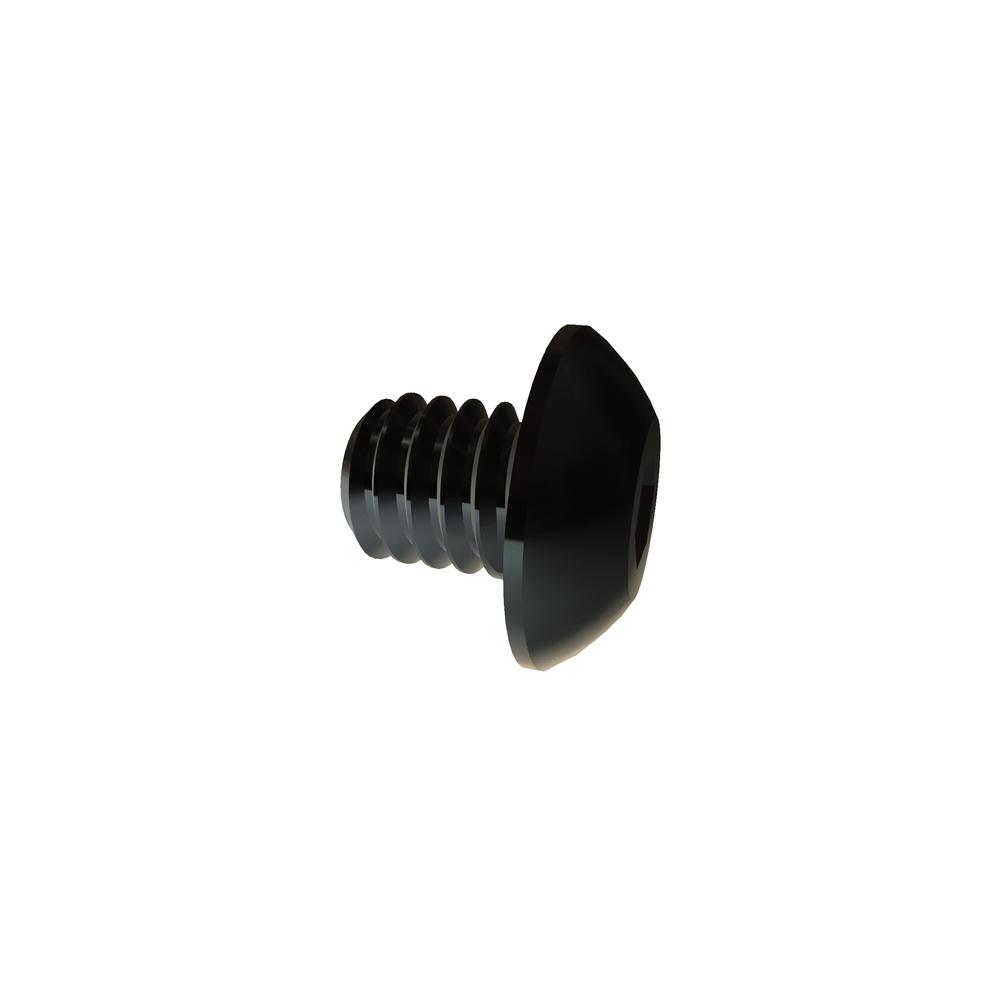

8C18BHCA
8-32 X 3/16 BUT SOC ALLOY
Alternate Codes: 062808, 062808-001, 14-0004-03
Pricing per Unit
| 1-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | 2500-4999 pcs | Call For |
|---|---|---|---|---|---|
| $0.161 | $0.097 | $0.081 | $0.066 | $0.058 | Larger Quantities |
In Stock
| Thread Size | 8-32 |
| Material | Alloy Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.164in |
| Head Type | Button |
| Drive Type | Hex Socket |
| Fillet Transition Diameter (Min.) | 0.184in |
| Fillet Transition Diameter (Max.) | 0.194in |
| Head Side Height (Ref.) | 0.015in |
| Key Engagement | 0.052in |
| Brand | VARIED |
| Additional Industry Cross Reference | 91255A189 |
| Length | 3/16in |
| Meets (Standard) | ASME B18.3 |
| Head Diameter (Max.) | 0.312in |
| Head Diameter (Min.) | 0.298in |
| Head Height (Max.) | 0.087in |
| Head Height (Min.) | 0.077in |
| Hex Socket Size | 0.094in |
