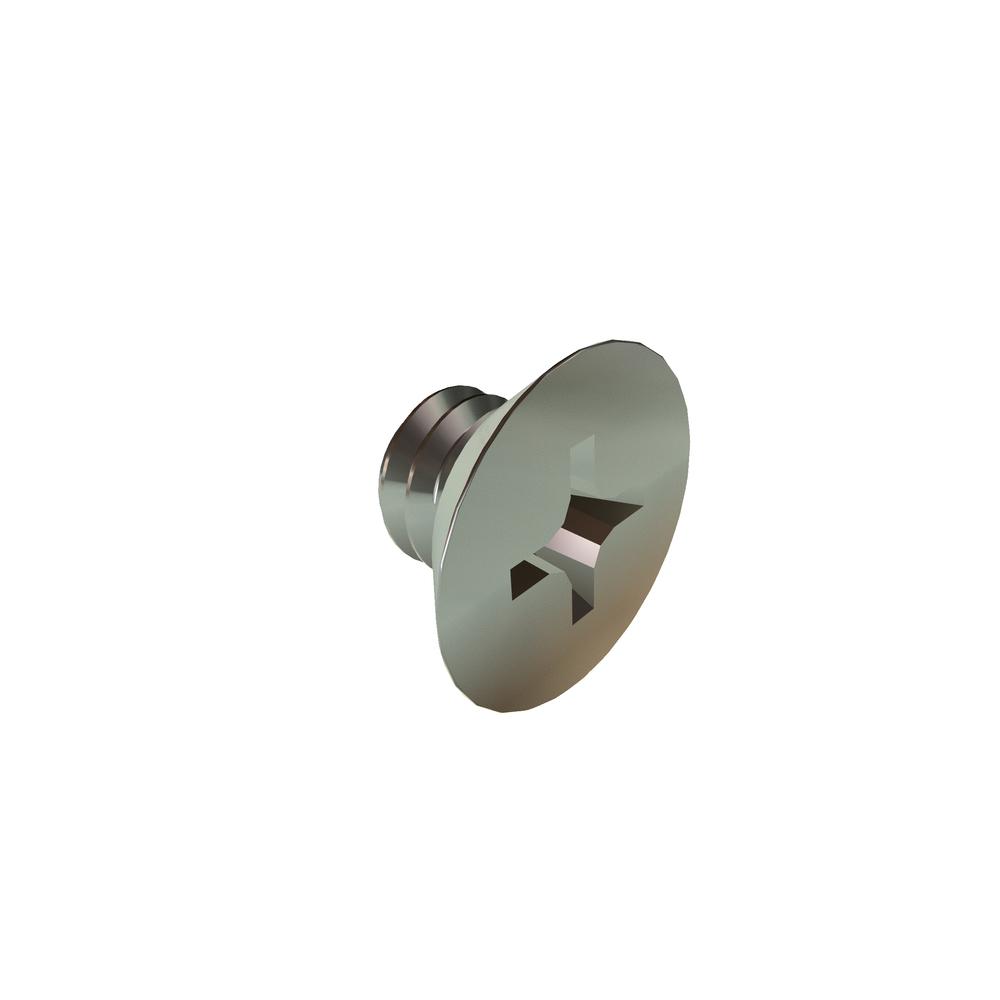

8C18PFUS
8-32 X 3/16 PHIL FLAT U/C SST RoHS
Alternate Codes: 2806-0214-03, 91771A189, MS51959-40, P4210
Pricing per Unit
| 1-499 pcs | 500-999 pcs | 1000-2499 pcs | 2500-4999 pcs |
|---|---|---|---|
| $0.076 | $0.047 | $0.034 | $0.026 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | 8-32 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.164in |
| Head Type | Flat Undercut |
| Drive Type | Phillips |
| Drive Size | 2 |
| Recess Diameter | 0.168in |
| Recess Depth (Min.) | 0.072in |
| Recess Depth (Max.) | 0.095in |
| Brand | VARIED |
| Additional Industry Cross Reference | 91771A189 |
| Length | 0.18in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.312in |
| Head Diameter (Min.) | 0.285in |
| Head Height (Max.) | 0.070in |
| Head Height (Min.) | 0.058in |
