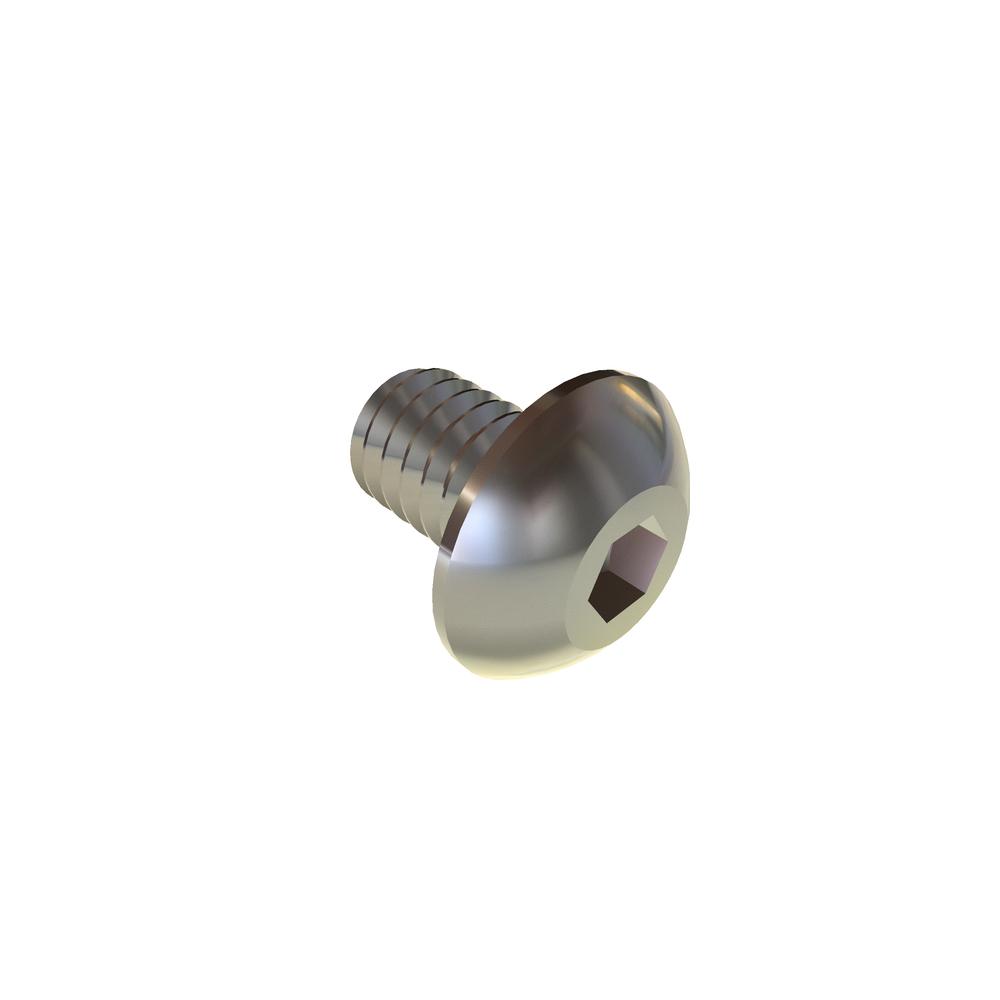

8-32 X 1/4 BUT SOC SST RoHS
8C25BHCS
| Item Id | 8C25BHCS |
| Description | 8-32 X 1/4 BUT SOC SST RoHS |
| Alternate Codes | 004671, 12-0000374, 2806-0514-04, 2825-3002, 7137-0804, 900006-0004, 915-14002-00, LD-0587-01 |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 92949A190 |
| Brand | VARIED |
| Drive Type | Hex Socket |
| Fillet Transition Diameter (Max.) | 0.194in |
| Fillet Transition Diameter (Min.) | 0.184in |
| Finish | Plain |
| Head Diameter (Max.) | 0.312in |
| Head Diameter (Min.) | 0.298in |
| Head Height (Max.) | 0.087in |
| Head Height (Min.) | 0.077in |
| Head Side Height (Ref.) | 0.015in |
| Head Type | Button |
| Hex Socket Size | 0.094in |
| Key Engagement | 0.052in |
| Length | 1/4in |
| Material | Stainless Steel |
| Meets (Standard) | ASME B18.3 |
| Nominal Diameter | 0.164in |
| RoHS | Compliant |
| Thread Size | 8-32 |
| Thread Type | Unified Coarse Thread (UNC) |
| Units | Inch |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
