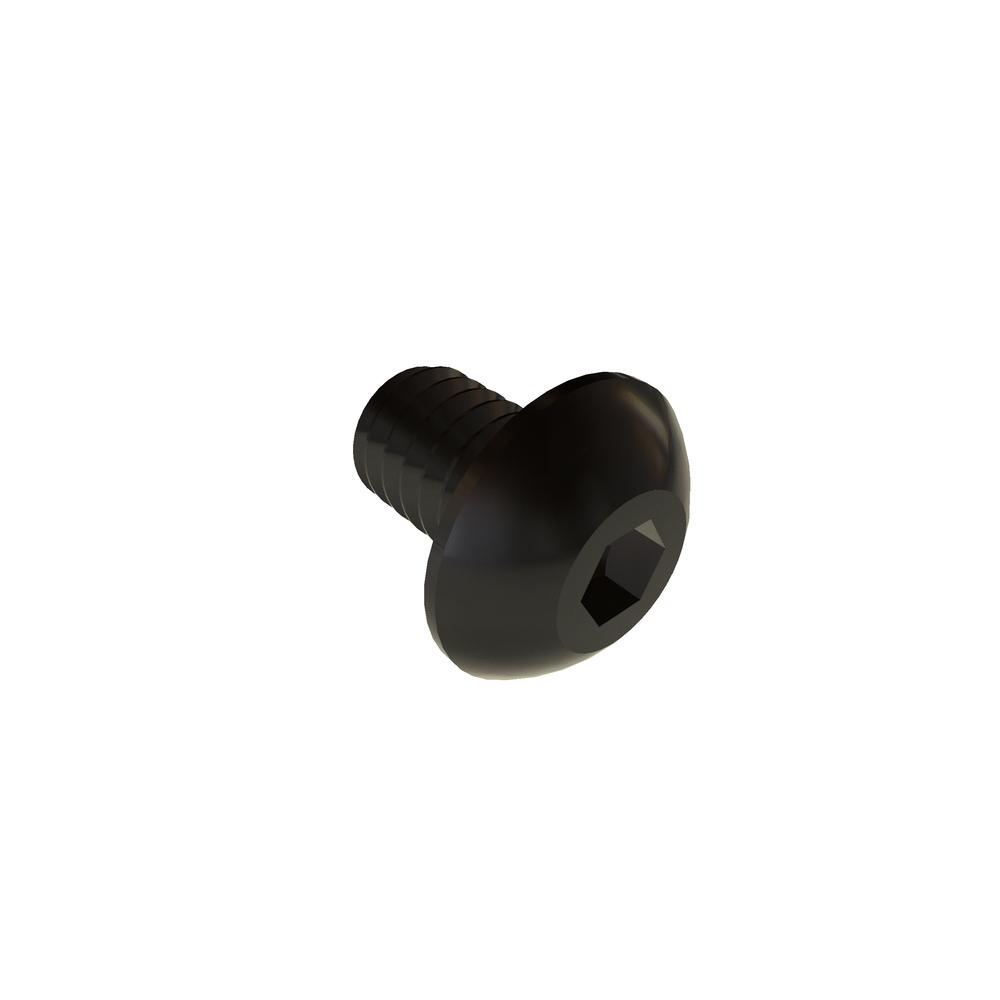

8C25BHCSB
8-32 X 1/4 BUT SOC SST RoHS BLK RoHS
Alternate Codes: 000-5399, 100-0006-00, 2826-3841-B, 97763A176
Pricing per Unit
| 1-99 pcs |
|---|
| $0.814 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | 8-32 |
| Material | Stainless Steel |
| Finish | Black Oxide |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.164in |
| Head Type | Button |
| Drive Type | Hex Socket |
| Fillet Transition Diameter (Min.) | 0.184in |
| Fillet Transition Diameter (Max.) | 0.194in |
| Head Side Height (Ref.) | 0.015in |
| Key Engagement | 0.052in |
| Brand | VARIED |
| Additional Industry Cross Reference | 97763A176 |
| Length | 1/4in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.3 |
| Head Diameter (Max.) | 0.312in |
| Head Diameter (Min.) | 0.298in |
| Head Height (Max.) | 0.087in |
| Head Height (Min.) | 0.077in |
| Hex Socket Size | 0.094in |
