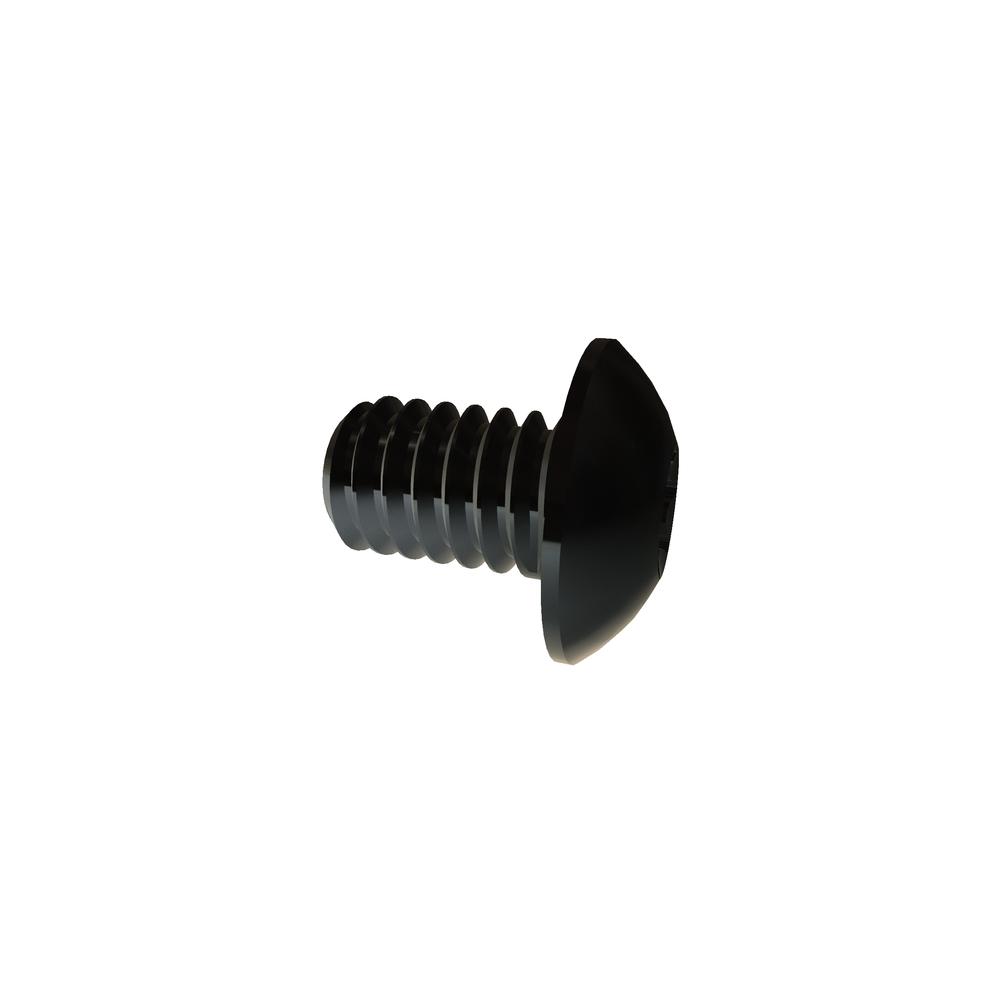

8C25BHXA
8-32 X 1/4 BUT HD TORX ALLOY
Alternate Codes: N/A
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | 8-32 |
| Material | Alloy Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.164in |
| Head Type | Button |
| Drive Type | Torx Socket |
| Drive Size | T15 |
| Fillet Transition Diameter (Min.) | 0.184in |
| Fillet Transition Diameter (Max.) | 0.194in |
| Head Side Height (Ref.) | 0.015in |
| Key Engagement | 0.052in |
| Torx Socket Size | 0.128in |
| Brand | VARIED |
| Length | 1/4in |
| Meets (Standard) | ASME B18.3 |
| Head Diameter (Max.) | 0.312in |
| Head Diameter (Min.) | 0.298in |
| Head Height (Max.) | 0.087in |
| Head Height (Min.) | 0.077in |
