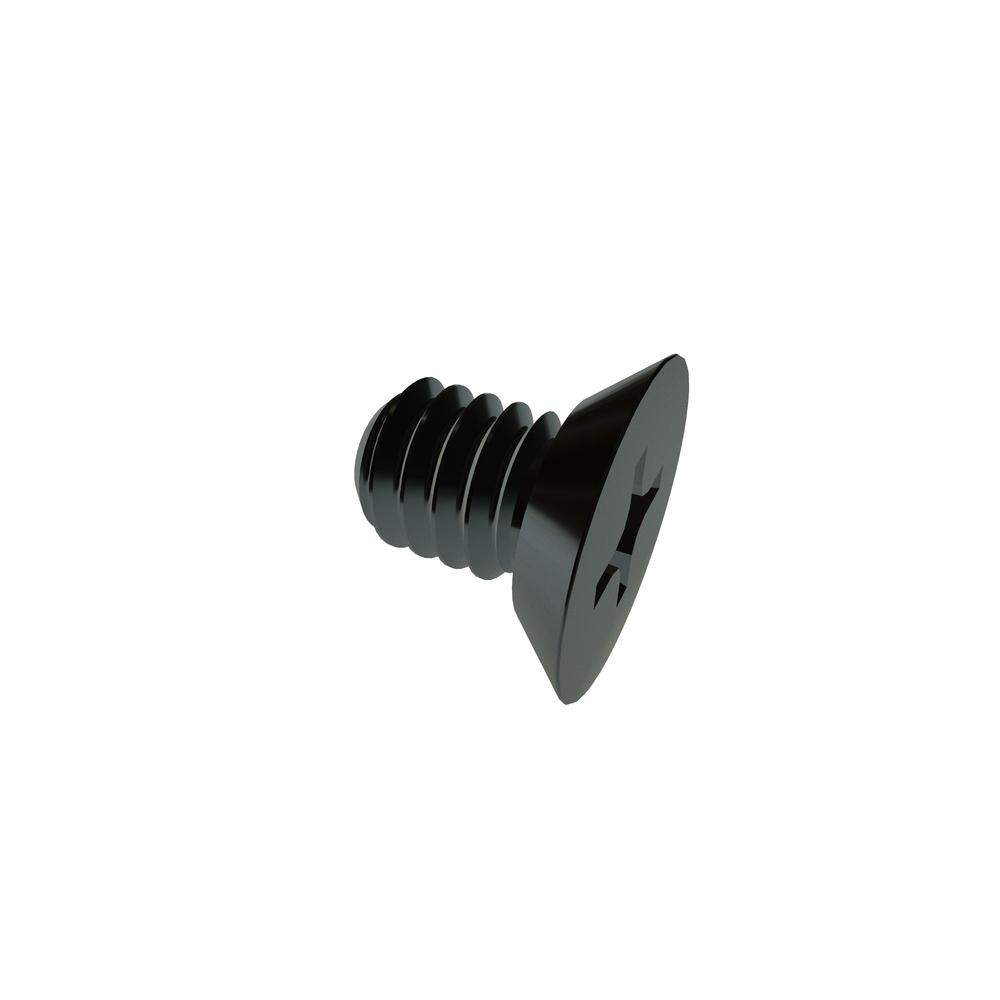

8C25PFUZR
8-32 X 1/4 PHIL FLAT U/C STL ZN CR3
Alternate Codes: 001263, 068659, 5991065, 8C25PFUZt
Pricing per Unit
| 1-499 pcs | 500-999 pcs | 1000-2499 pcs | 2500-4999 pcs | 5000-9999 pcs | Call For |
|---|---|---|---|---|---|
| $0.065 | $0.040 | $0.029 | $0.022 | $0.021 | Larger Quantities |
In Stock
| Thread Size | 8-32 |
| Material | Steel |
| Finish | Zinc Cr3 |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.164in |
| Head Type | Flat Undercut |
| Drive Type | Phillips |
| Drive Size | 2 |
| Recess Diameter | 0.168in |
| Recess Depth (Min.) | 0.072in |
| Recess Depth (Max.) | 0.095in |
| Brand | VARIED |
| Length | 0.25in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.312in |
| Head Diameter (Min.) | 0.285in |
| Head Height (Max.) | 0.070in |
| Head Height (Min.) | 0.058in |
