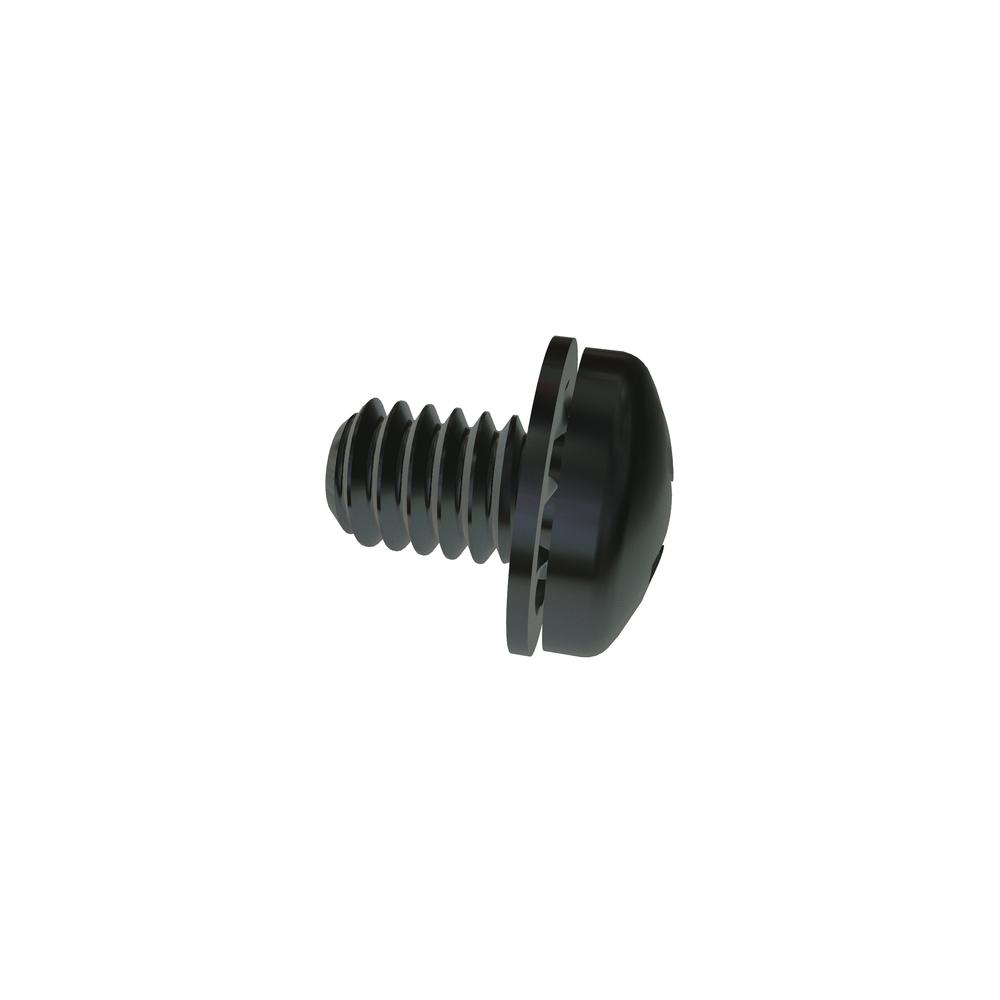

8C25PPIZR
8-32 X 1/4 PHIL PAN INT SEMS STL ZN CR3
Alternate Codes: 50532-02, 8C25PPIZt
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | 8-32 |
| Material | Steel |
| Finish | Zinc Cr3 |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.164in |
| Head Type | Pan |
| Drive Type | Phillips |
| Lock Washer Thickness (Max.) | 0.023in |
| Lock Washer Outside Diameter (Min.) | 0.327in |
| Lock Washer Outside Diameter (Max.) | 0.338in |
| Washer Type | Internal Tooth Lock Washer |
| Drive Size | 2 |
| Penetration Depth (Min.) | 0.071in |
| Penetration Depth (Max.) | 0.097in |
| Recess Diameter | 0.175in |
| Head Radius (Min.) | 0.015in |
| Brand | VARIED |
| Additional Industry Cross Reference | 90403A190 |
| Length | 1/4in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.322in |
| Head Diameter (Min.) | 0.306in |
| Head Height (Max.) | 0.115in |
| Head Height (Min.) | 0.105in |
| Lock Washer Thickness (Min.) | 0.018in |
