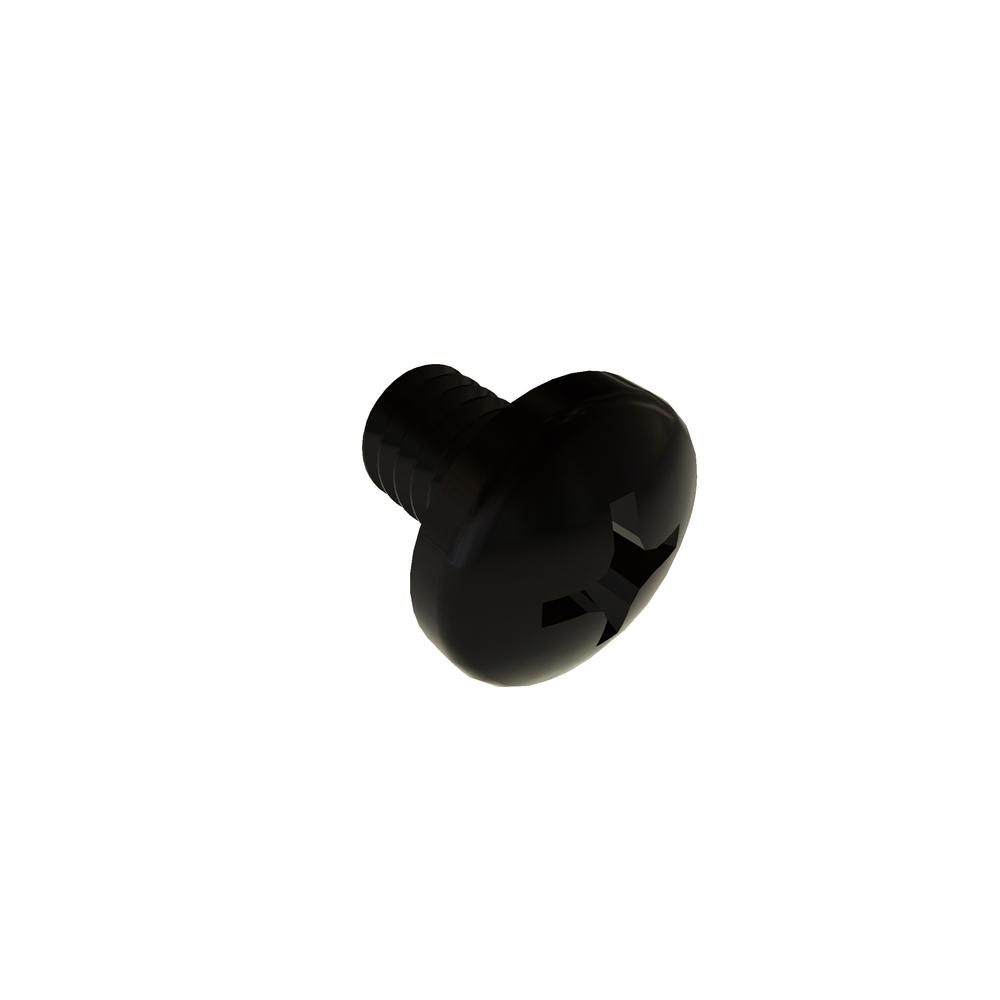

Image for reference purposes only. Actual product may vary.
8C25PPMZB
8-32 X 1/4 PH PAN STL BLK RoHS
Alternate Codes: 031G142220, 1156-0440, 490-0058
8-32 X 1/4 Phillips Pan Head Steel Black Oxide RoHS3
Pricing per Unit
| 1-499 pcs | 500-999 pcs | 1000-2499 pcs | 2500-4999 pcs | 5000-9999 pcs | Call For |
|---|---|---|---|---|---|
| $0.095 | $0.059 | $0.042 | $0.033 | $0.031 | Larger Quantities |
In Stock
Maximum stock already in cart
| Length | 0.25in |
| Thread Size | 8-32 |
| Finish | Black Oxide |
| Brand | VARIED |
| Drive Type | Phillips |
| Material | Steel |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.164in |
| Head Type | Pan |
| Drive Size | 2 |
| Recess Diameter | 0.175in |
| Head Radius (Min.) | 0.015in |
| Recess Depth (Min.) | 0.071in |
| Recess Depth (Max.) | 0.097in |
