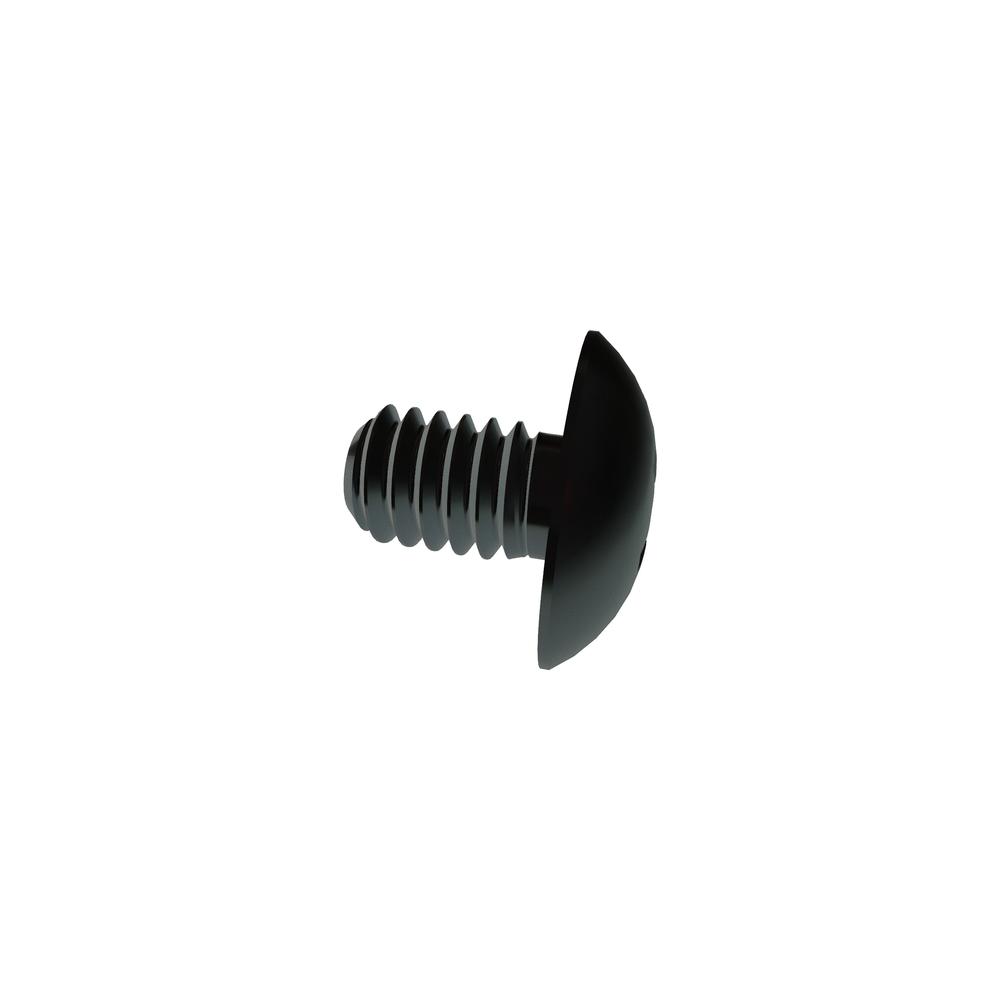

8C25PTMZR
8-32 X 1/4 PHIL TRUSS STL ZN CR3
Alternate Codes: N/A
Pricing per Unit
| 1-499 pcs | 500-999 pcs | 1000-2499 pcs | 2500-4999 pcs | 5000-9999 pcs | Call For |
|---|---|---|---|---|---|
| $0.079 | $0.049 | $0.035 | $0.027 | $0.025 | Larger Quantities |
In Stock
| Thread Size | 8-32 |
| Material | Steel |
| Finish | Zinc Cr3 |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.164in |
| Head Type | Truss |
| Drive Type | Phillips |
| Drive Size | 2 |
| Recess Diameter | 0.166in |
| Head Radius (Min.) | 0.254in |
| Recess Depth (Min.) | 0.063in |
| Recess Depth (Max.) | 0.088in |
| Brand | VARIED |
| Length | 0.25in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.384in |
| Head Diameter (Min.) | 0.364in |
| Head Height (Max.) | 0.102in |
| Head Height (Min.) | 0.088in |
