8C25SPMN

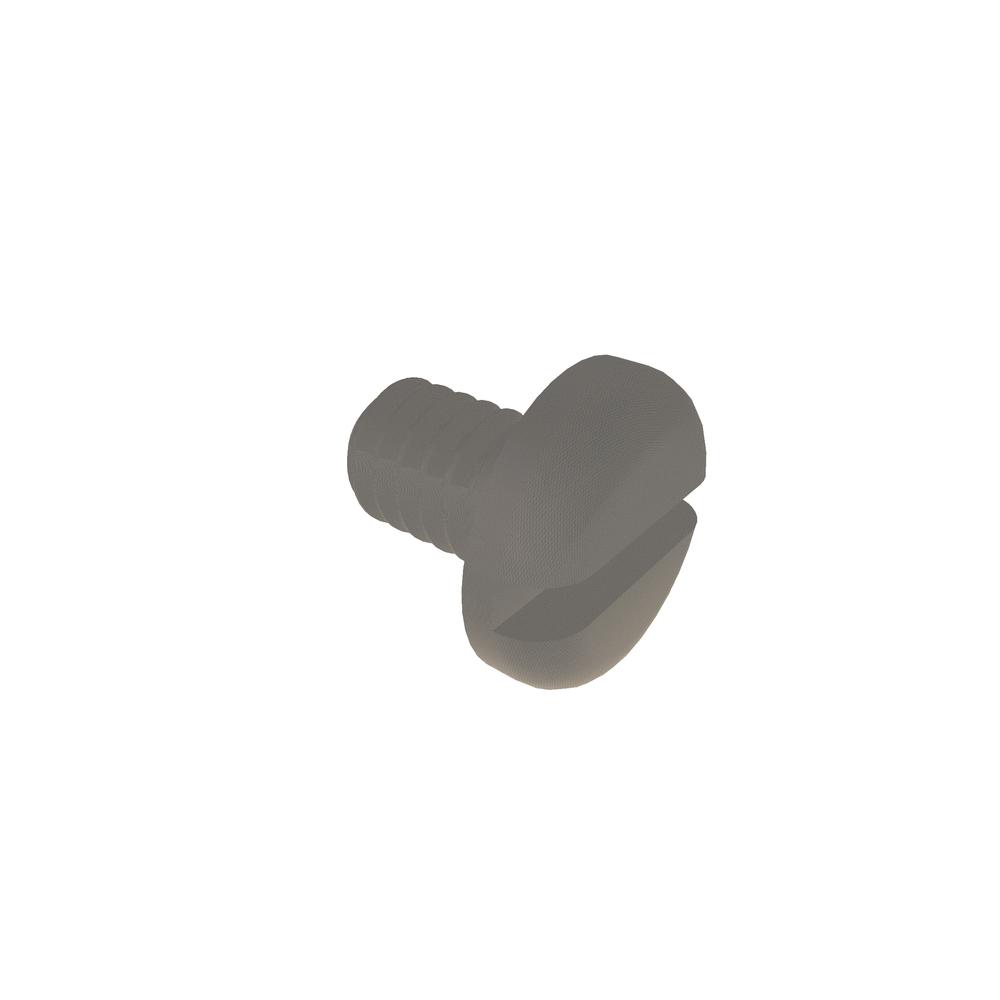

8-32 X 1/4 SLOT PAN HD NYL
Alternate Codes: 500050
Pricing per Unit
| 1-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | 2500-4999 pcs | Call For |
|---|---|---|---|---|---|
| $0.207 | $0.124 | $0.104 | $0.085 | $0.075 | Larger Quantities |
In Stock
| Thread Size | 8-32 |
| Material | Nylon |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.164in |
| Head Type | Pan |
| Drive Type | Slotted |
| Head Radius (Min.) | 0.052in |
| Slot Depth (Min.) | 0.045in |
| Slot Depth (Max.) | 0.058in |
| Slot Width (Min.) | 0.045in |
| Slot Width (Max.) | 0.054in |
| Brand | VARIED |
| Additional Industry Cross Reference | 92942A734 |
| Length | 0.25in |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.322in |
| Head Diameter (Min.) | 0.306in |
| Head Height (Max.) | 0.096in |
| Head Height (Min.) | 0.085in |
