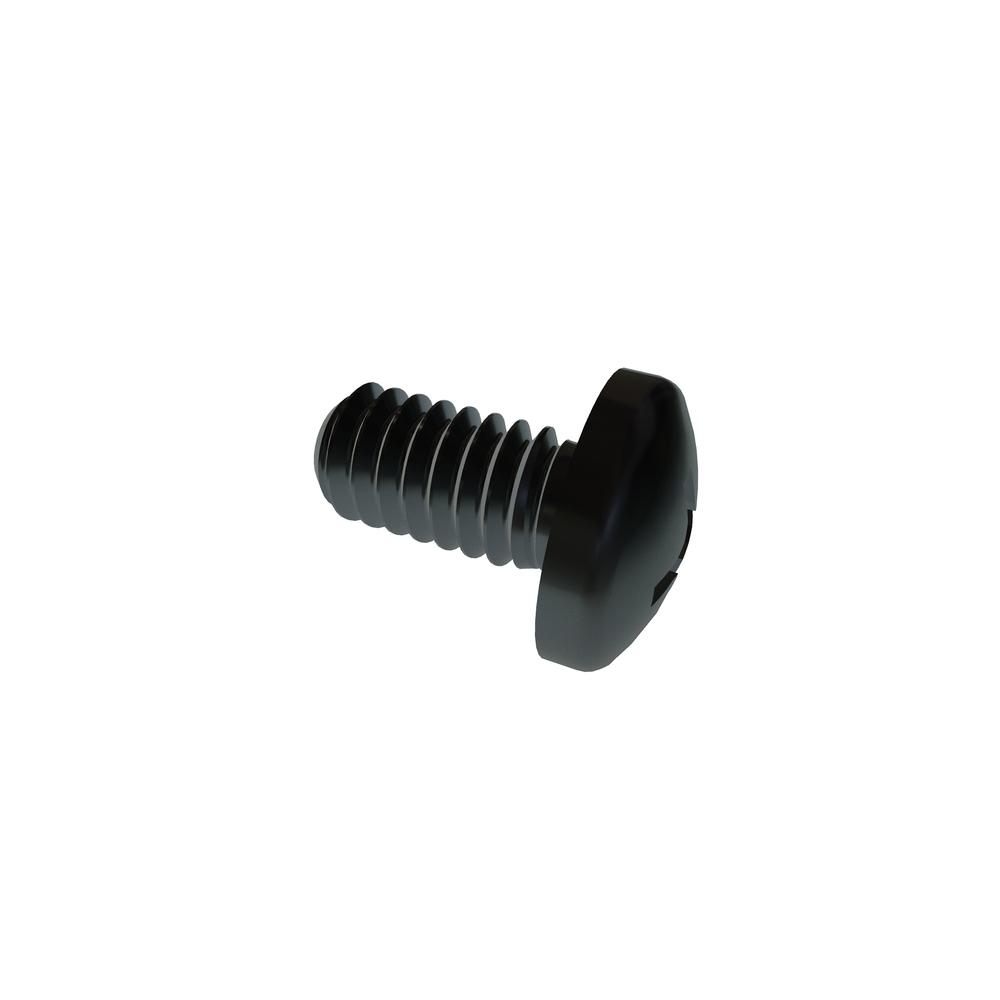

Image for reference purposes only. Actual product may vary.
8C31PPMZR
8-32 X 5/16 PH PAN STL ZN CR3
Alternate Codes: 1901-0098, 20214136, 51072-08005, 73-H170-00, 780-00437, 90272A191
8-32 X 5/16 Phillips Pan Head Steel Zinc Plated RoHS3
Pricing per Unit
| 1-499 pcs | 500-999 pcs | 1000-2499 pcs | 2500-4999 pcs | 5000-9999 pcs | Call For |
|---|---|---|---|---|---|
| $0.117 | $0.072 | $0.052 | $0.040 | $0.037 | Larger Quantities |
In Stock
Maximum stock already in cart
| Length | 0.31in |
| Thread Size | 8-32 |
| Finish | Zinc Cr3 |
| Brand | VARIED |
| Drive Type | Phillips |
| Material | Steel |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.164in |
| Head Type | Pan |
| Drive Size | 2 |
| Recess Diameter | 0.175in |
| Head Radius (Min.) | 0.015in |
| Recess Depth (Min.) | 0.071in |
| Recess Depth (Max.) | 0.097in |
| Additional Industry Cross Reference | 90272A191 90272A191 |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.322in |
| Head Diameter (Min.) | 0.306in |
| Head Height (Max.) | 0.115in |
| Head Height (Min.) | 0.105in |
