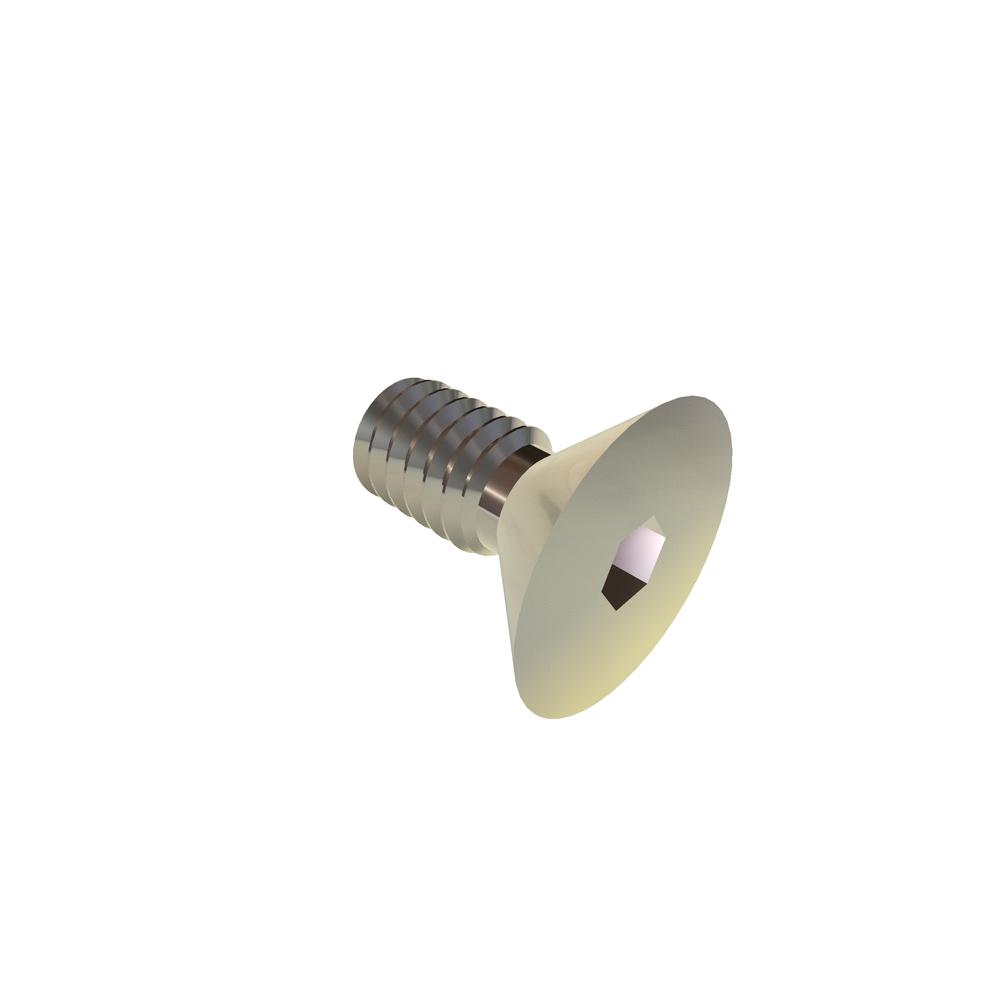

Image for reference purposes only. Actual product may vary.
8C37FHCS
8-32 X 3/8 FLAT SOC SST RoHS
Alternate Codes: 005226, 030432.0001, 1030039, 12-0002600, 2-575, 206431, 2826-8883, 7128-0806
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.851 | $0.468 | $0.390 | $0.334 | $0.275 | Larger Quantities |
In Stock
Maximum stock already in cart
| Nominal Diameter | 0.164in |
| Length | 3/8in |
| Thread Size | 8-32 |
| Finish | Plain |
| Material | Stainless Steel |
| Head Type | Flat |
| Drive Type | Hex Socket |
| Brand | VARIED |
| RoHS | Compliant |
| Hex Socket Size | 3/32in |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Key Engagement | 0.076in |
| Body Diameter (Min.) | 0.159in |
| Additional Industry Cross Reference | 92210A192 |
| Body Diameter (Max.) | 0.164in |
| Head Diameter (Max.) | 0.359in |
| Head Diameter (Min.) | 0.311in |
| Head Height (Min.) | 0.112in |
