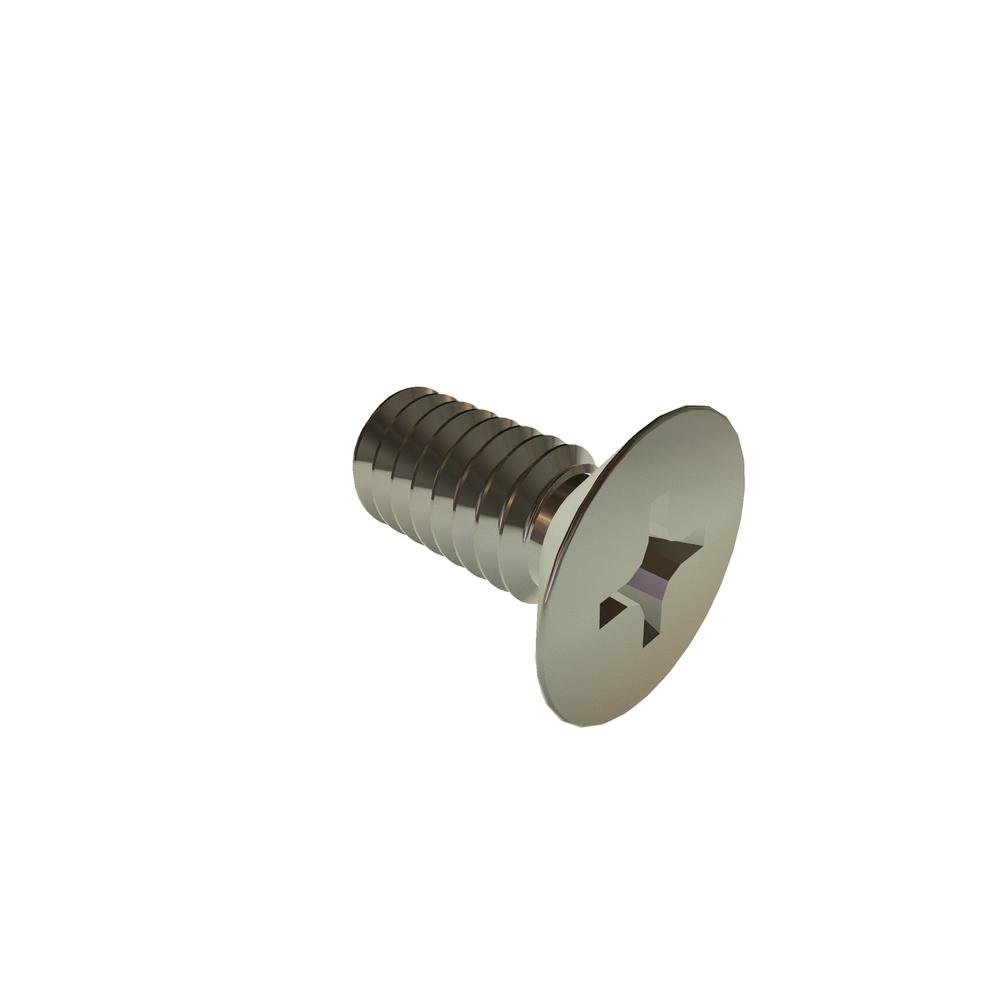

8-32 X 3/8 PHIL FLAT 100 DEG SST RoHS
8C37PFHS
| Item Id | 8C37PFHS |
| Description | 8-32 X 3/8 PHIL FLAT 100 DEG SST RoHS |
| Alternate Codes | 25-0017-06, 2600165-03, 701-0614-006 |
| Extended Description | |
| Packaging | EA |
| Brand | VARIED |
| Drive Size | 2 |
| Drive Type | Phillips |
| Finish | Plain |
| Head Diameter (Max.) | 0.312in |
| Head Diameter (Min.) | 0.282in |
| Head Height | 0.072in |
| Length | 0.37in |
| Material | Stainless Steel |
| Meets (Standard) | ASME B18.6.3 |
| Nominal Thread Size | 0.164in |
| Recess Depth (Max.) | 0.090in |
| Recess Depth (Min.) | 0.067in |
| Recess Diameter | 0.162in |
| RoHS | Compliant |
| Thread Size | 8-32 |
| Type | Flat Head 100 Degree |
| Units | Inch |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
